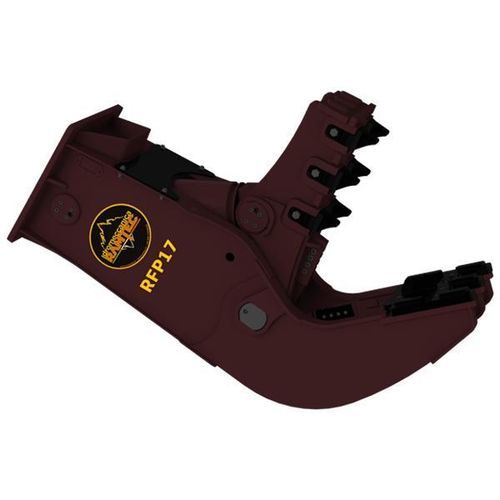

Secondary demolition hydraulic crusher RFP17

for concretefor excavators

Description
The RFP fixed pulveriser is intended for secondary demolition tasks, reduction of demolition blocks and separation of concrete from reinforcing bars to ease handling and recycling. RFP models cover carrier classes from 6 t to 130 t; model RFP17 corresponds to the mid-range size within this series. The attachment is manufactured in HARDOX for body and critical components and is fitted with interchangeable teeth and blades.

Mounting

• Recommended carrier / excavator weight class: 16-20 t (see detailed specs for ranges)

USA SPECS
Excavator weight: 35000 – 44000 lbs
Equipment weight: 3417 lbs
A Opening: 32 inches
B Length: 82 inches
C Width: 18.1 inches
Maximum oil pressure: 4930 psi
Required oil flow: 52 – 63 gal/min

METRIC SYSTEM
Excavator weight: 16 – 20 ton
Equipment weight: 1550 kg
A Opening: 815 mm
B Length: 2080 mm
C Width: 460 mm
Maximum oil pressure: 340 bar
Required oil flow: 200 – 240 L/min

Technical specifications

• Type: Fixed pulverizer
• Model: RFP series (model RFP17)
• Material: HARDOX construction for body and key components
• Interchangeable teeth and blades
• Suitable carriers: 6 t to 130 t (RFP models range)
• Weight class range (RFP models): 500 kg to 10400 kg
• USA spec — Excavator weight: 35000–44000 lbs; Equipment weight: 3417 lbs; Opening (A): 32 in; Length (B): 82 in; Width (C): 18.1 in; Max oil pressure: 4930 psi; Required oil flow: 52–63 gal/min
• Metric spec — Excavator weight: 16–20 ton; Equipment weight: 1550 kg; Opening (A): 815 mm; Length (B): 2080 mm; Width (C): 460 mm; Max oil pressure: 340 bar; Required oil flow: 200–240 L/min
