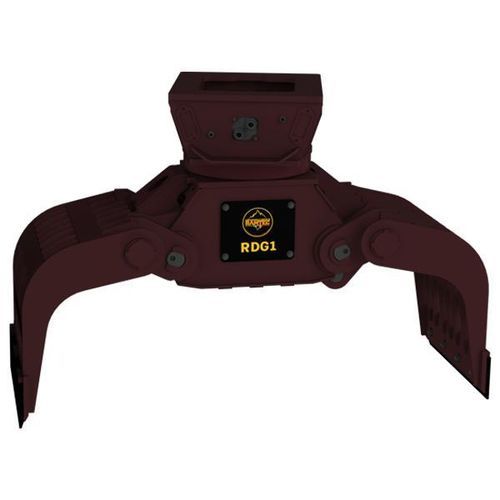

Hydraulic sorting grapple RDG1

scrapfor the recycling industry

Product overview
The RDG sorting grab is a versatile demolition and selection attachment designed to handle and facilitate recycling of residual demolition material. Available models weigh from 187 kg to 3500 kg and mount on mini to large excavators from 1.8 t up to 65 t. All models feature a 360° continuous rotation system for precise and agile operation in complex conditions. Selection grabs are built with wear-resistant materials and protective treatments, are regularly updated for optimized performance, and include smooth hydraulic movements and interchangeable blades.

Mounting
Can be mounted on mini excavators and medium-to-large excavators. Example dimensions/ratings shown are suitable for carriers in the 1.8–2.5 t class; other models cover up to 65 t excavators.

Key features

• 360° continuous rotation system
• Wear-resistant materials and protective treatments
• Smooth hydraulic movements
• Interchangeable blades
• Model weights from 187 kg to 3500 kg

Technical specifications

• Excavator weight (example / USA): 3968 – 5510 lbs
• Excavator weight (example / Metric): 1.8 – 2.5 ton
• Equipment weight (USA): 412 lbs
• Equipment weight (Metric): 187 kg
• A Opening (USA): 33.5 inches
• A Opening (Metric): 850 mm
• B Height (USA): 29 inches
• B Height (Metric): 740 mm
• C Width (USA): 17.5 inches
• C Width (Metric): 450 mm
• Maximum oil pressure (USA): 2610 psi
• Maximum oil pressure (Metric): 180 bar
• Required oil flow (USA): 6 gal/min
• Required oil flow (Metric): 25 L/min
• Rotation oil pressure (USA): 725 psi
• Rotation oil pressure (Metric): 50 bar
• Rotation oil flow (USA): 4 gal/min
• Rotation oil flow (Metric): 15 L/min
• Models weight range: 187 kg – 3500 kg
• Mounting range: carriers from 1.8 t up to 65 t
