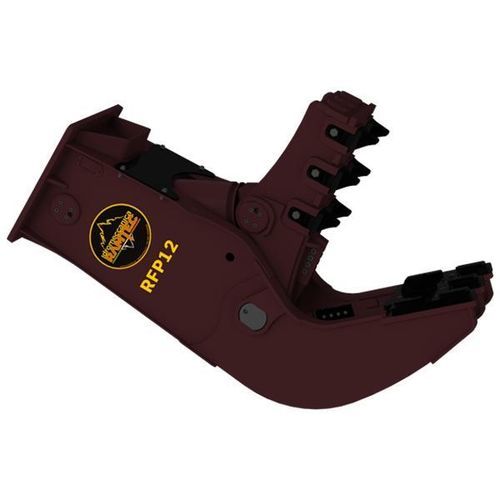

Secondary demolition hydraulic crusher RFP12

for concretefor excavators

Description
The RFP fixed pulverizer is designed for secondary demolition, reduction of demolition blocks and separation of concrete from reinforcement to ease handling and recycling. Idromeccanica Ramtec RFP models suit carriers from 6 t to 130 t and range from 500 kg to 10400 kg. This hydraulic pulverizer is manufactured in HARDOX and is provided with interchangeable teeth and blades for field replacement.

Mount / Recommended carrier

• Mountable on excavators: 12-17 t
• RFP model range suitable for carriers from 6 t to 130 t

USA SPECIFICATIONS
Excavator weight: 26500 – 37500 lbs
Equipment weight: 2425 lbs
A Opening: 27 inches
B Length: 76 inches
C Width: 15.75 inches
Maximum oil pressure: 4495 psi
Required oil flow: 47 – 58 gal/min

METRIC SYSTEM
Excavator weight: 11 – 17 ton
Equipment weight: 1100 kg
A Opening: 700 mm
B Length: 1920 mm
C Width: 400 mm
Maximum oil pressure: 310 bar
Required oil flow: 180 – 220 L/min

Features / technical specifications

• Model family: RFP (fixed pulverizers)
• Model: RFP12
• Material: HARDOX construction for wear resistance
• Interchangeable teeth and blades
• RFP model weight classes range from 500 kg to 10400 kg (varies by model)
• RFP models suitable for carriers from 6 t to 130 t
• RFP12 specific equipment weight: 1100 kg (metric panel)
• Mountable on excavators approx. 12–17 t (page content) / 11–17 ton (metric panel)
• Hydraulic requirements (RFP12): up to 310 bar (maximum oil pressure) / 180–220 L/min (required oil flow) (metric)
• Hydraulic requirements (USA): up to 4495 psi (maximum oil pressure) / 47–58 gal/min (required oil flow)
