Controlled demolition hydraulic crusher RHC200

for primary demolitionfor concretefor excavators

Description

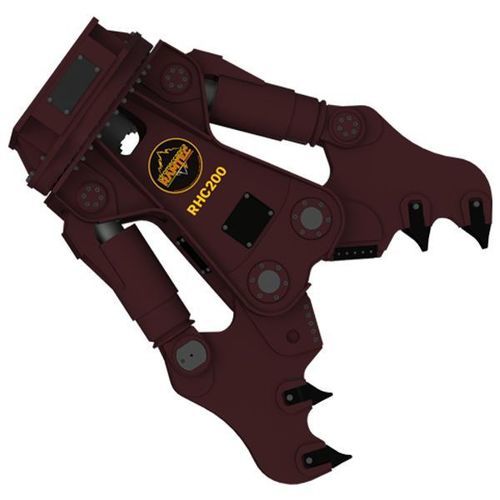

The RHC200 demolition crusher is intended for primary demolition of concrete and masonry. It has a 250 mm jaw opening and a compact design suitable for controlled crushing tasks when mounted on mini excavators.

You can mount it on

• Mini Excavator
• 1.5-3 t

USA SPECS

• Excavator weight: 3300 – 6600 lbs
• Equipment weight: 463 lbs
• A Opening: 9.8 inches
• B Length: 33 inches
• P Depth: 11.8 inches
• Maximum oil pressure: 3190.8 psi
• Required oil flow: 5 – 8 gal/min
• Rotation oil pressure: 725 – 870 psi
• Rotation oil flow: 4 gal/min

METRIC SYSTEM

• Excavator weight: 1.5 – 3 ton
• Equipment weight: 210 kg
• A Opening: 250 mm
• B Length: 840 mm
• P Depth: 300 mm
• Maximum oil pressure: 220 bar
• Required oil flow: 20 – 30 L/min
• Rotation oil pressure: 50 – 60 bar
• Rotation oil flow: 15 L/min

Technical specifications

• Model: RHC200
• Application: primary demolition activities (concrete, masonry)
• Mounting carrier: mini excavator, recommended carrier weight 1.5–3 t (3300–6600 lbs)
• Equipment weight: 210 kg / 463 lbs
• Jaw opening (A): 250 mm / 9.8 in
• Length (B): 840 mm / 33 in
• Depth (P): 300 mm / 11.8 in
• Maximum oil pressure: 220 bar / 3190.8 psi
• Required oil flow: 20–30 L/min (rotation: 15 L/min) / 5–8 gal/min (rotation: 4 gal/min)
• Rotation oil pressure: 50–60 bar / 725–870 psi
