Crawler spider lift G-X17E

electricrough terrain

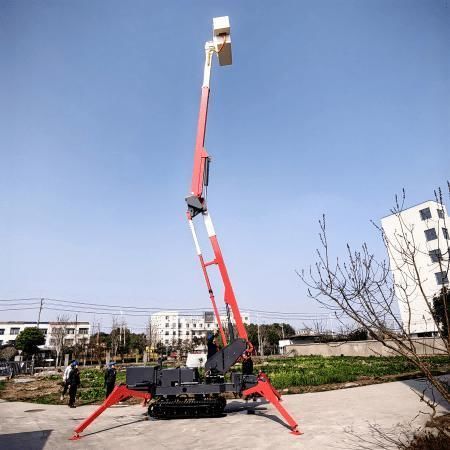

This Insulated Crawler Spider Boom Lift offers a maximum working height of 17.6 meters and a platform height of 15.6 meters, making it ideal for aerial tasks in challenging environments, especially near live electrical lines. Powered by a Kubota D1105 diesel engine and 220V mains power, it ensures stable, dual-source operation. Key features include frog-leg outriggers with one-touch leveling, adjustable rubber tracks for narrow or rough terrain, and a dual insulated boom design for operator safety. The upper boom is equipped with an electrical protective cover, maintaining insulation even when fully retracted. A perfect solution for safe and efficient high-altitude work. Specifications: - Model: G-X17E - Max. Working height: 17.6m - Max. Platform height: 15.6m - Max. Working radius: 9.3m - Platform Dimensions: 1.2*0.61*1.07m - Length- stowed: 7.8m - Width-stowed: 1.62m - Height-stowed: 2.1m - Effective Insulation Length of Upper Boom: ≥1.0m - Effective Insulation Length of Lower Boom: ≥0.4m Productivity: - Lift Capacity: 230kg - Platform Occupancy: 2 - Platform Rotation: ±80° - Jib Rotation: 45° - Turntable Rotation: 360° - Drive Speed- stowed: 2.1km/h - Gradeability: 30% - Max. Working Angle: 15° - Weight: 3950kg Power: - Insulation Voltage Rating: 35 kV - Insulated Platform AC Withstand Voltage: (0.4 m, 50 kV/1 min) No flashover or breakdown - Insulated Boom Power Frequency Withstand Voltage: (0.4 m, 50 kV/1 min) No flashover or breakdown - Vehicle AC Leakage Current (1 m, 20 kV): ≤500 µA - Insulated Boom Material: FRP Insulating Material - Power System (Standard): Diesel Engine D1105 (Kubota) + 220V Mains Power - Frog-Leg Outriggers – One-touch automatic leveling with outrigger safety locks for enhanced stability. - Dual Power System – Stable performance with stepless hydraulic speed control for smooth operation. - Hydraulic Safety – Boom and outrigger cylinders equipped with balance valves, hydraulic locks, and an electric emergency pump to ensure system safety even in the event of hose failure. - Rubber Tracks – Independently operated and width-adjustable tracks allow the machine to operate efficiently in narrow streets and extremely complex or harsh environments. - Ground-Level Work Basket – Platform can be lowered to the ground for easy and safe entry/exit. - Dual Insulated Boom Design – Upper and lower arms are insulated to ensure operator safety during live-line work. - Upper Insulated Control System – Provides additional protection for operators working on live lines and effectively prevents surface creepage on the platform. - Electrical Protective Cover on Upper Boom – Adds over 1.0 meter of effective insulation length. Even when the insulated boom is fully retracted, insulation performance is maintained.
