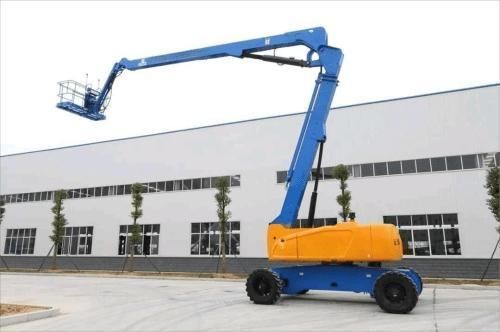

Mobile articulated boom lift G-RZ32

self-propelledwheeleddiesel

The 32-meter diesel articulating boom lift is engineered for maximum reach and versatility, offering a remarkable 32-meter working height to tackle even the most challenging tasks. Powered by a reliable diesel engine, it provides robust performance and durability, making it ideal for tough outdoor environments. The articulating boom allows for precise maneuverability around obstacles, ensuring access to hard-to-reach areas with ease. With advanced controls and rugged construction, this lift is perfect for high-demand construction, maintenance, and industrial projects, delivering power, stability, and safety at great heights. - Parameters - Model: G-RZ32 - Specifications - Max. Working height: 32m - Max. Platform height: 30m - Max. up and over clearance: 12.2m - Horizontal outreach: 20.2m - Platform width: 0.91m - Platform length: 2.44m - Height – stowed: 3.22m - Length – stowed: 13.1m - Width: 2.58m - Wheelbase: 3m - Ground clearance – center: 0.43m - Productivity - Max. Lift capacity: 230kg/480kg - Number of platform occupants: 2/3 - Platform rotation: 180° - Turntable rotation: 360° continuous - Drive speed – raised: 1.1km/h - Drive speed – stowed: 4.4km/h - Gradeability – stowed: 40% - Turning radius (inside): 2.6m - Turning radius (outside): 6.1m - Drive and steer: 4×4×2 - Weight: 19000kg - Power - Fuel tank capacity: 151L - Control voltage: 12V - Motor: Weichai/Cummins - Rated engine power: 54kw/2200rpm - Diesel engines offer robust performance, high fuel efficiency, and durability for long-duration heavy-duty work in challenging environments. - The use of PLC and CAN bus control simplifies wiring and facilitates maintenance, while metal aviation connectors with an IP65 protection rating ensure durability and resistance to dust and water. - The platform’s automatic leveling function, ensuring the tilt angle relative to the horizontal plane is no greater than 1.5°, provides enhanced safety, stability, and precision during operation. - The platform control panel is the same as the ground control. User-friendly design with safety factors considered ensures a reliable work performance. - The boom features dust and sand protection at the boom head and cylinder piston rod, and it is equipped with marine-grade, high-strength engineering plastic drag chains, making it suitable for harsh working environments. - The tires are designed for durability and traction, providing excellent performance and stability on rough and uneven terrain. - Technical Specifications / Features - Model: G-RZ32 - Max. Working height: 32m - Max. Platform height: 30m - Max. up and over clearance: 12.2m - Horizontal outreach: 20.2m - Platform width: 0.91m - Platform length: 2.44m - Height – stowed: 3.22m - Length – stowed: 13.1m - Width: 2.58m - Wheelbase: 3m - Ground clearance – center: 0.43m - Max. Lift capacity: 230kg/480kg - Number of platform occupants: 2/3 - Platform rotation: 180° - Turntable rotation: 360° continuous - Drive speed – raised: 1.1km/h - Drive speed – stowed: 4.4km/h - Gradeability – stowed: 40% - Turning radius (inside): 2.6m - Turning radius (outside): 6.1m - Drive and steer: 4×4×2 - Weight: 19000kg - Fuel tank capacity: 151L - Control voltage: 12V - Motor: Weichai/Cummins - Rated engine power: 54kw/2200rpm
