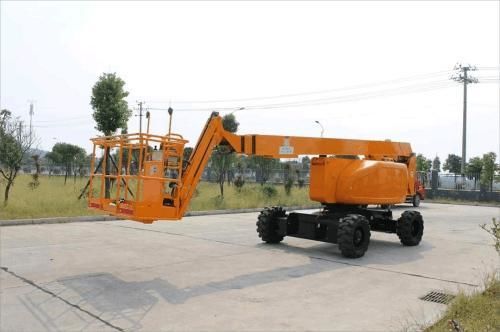

Wheeled articulated boom lift G-RZ26

self-propelleddieselfor harsh conditions

The 26-meter diesel articulating boom lift is built for high-performance tasks, offering an impressive working height of 26 meters. Equipped with a powerful diesel engine, this lift ensures reliable and efficient operation, even in the most challenging environments. Its articulating boom provides excellent reach and flexibility, enabling operators to easily navigate around obstacles and access difficult-to-reach areas. With rugged construction, durable tires, and advanced control systems, this boom lift is ideal for heavy-duty construction, maintenance, and industrial applications, delivering power, precision, and stability where it’s needed most. - Model: G-RZ26 - Max. Working height: 26.2m - Max. Platform height: 24.2m - Max. up and over clearance: 10.2m - Horizontal outreach: 15.4m - Platform width: 0.91m - Platform length: 2.44m - Height – stowed: 2.85m - Length – stowed: 8.54m - Width: 2.48m - Wheelbase: 3m - Ground clearance – center: 0.4m Productivity: - Max. Lift capacity: 230kg - Number of platform occupants: 2 - Platform rotation: 180° - Turntable rotation: 360° continuous - Drive speed – raised: 1.1km/h - Drive speed – stowed: 4.2km/h - Gradeability – stowed: 45% - Turning radius (inside): 1.75m - Turning radius (outside): 4.87m - Drive and steer: 4×4×2 - Weight: 15870kg Power: - Fuel tank capacity: 110L - Control voltage: 12V - Motor: Weichai/Cummins - Rated engine power: 36kw/2500rpm Features: - Diesel engines offer robust performance, high fuel efficiency, and durability for long-duration heavy-duty work in challenging environments. - The use of PLC and CAN bus control simplifies wiring and facilitates maintenance, while metal aviation connectors with an IP65 protection rating ensure durability and resistance to dust and water. - The platform’s automatic leveling function, ensuring the tilt angle relative to the horizontal plane is no greater than 1.5°, provides enhanced safety, stability, and precision during operation. - The platform control panel is the same as the ground control. User-friendly design with safety factors considered ensures a reliable work performance. - The boom features dust and sand protection at the boom head and cylinder piston rod, and it is equipped with marine-grade, high-strength engineering plastic drag chains, making it suitable for harsh working environments. - The tires are designed for durability and traction, providing excellent performance and stability on rough and uneven terrain.
