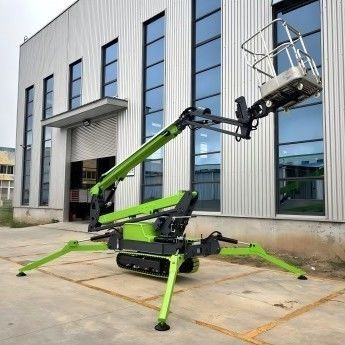

Crawler articulated boom lift G-S12C

hydraulic

The 12m Crawler Spider Boom Lift delivers a platform height of 12m and a working height of 14m, making it ideal for high-reach tasks in tight or uneven environments. Featuring a telescopic boom with a jib arm, it offers flexible, precise positioning. The ±80° rotatable aluminum platform is quick to detach, and the 360° turntable with a worm gear reducer ensures smooth rotation. With a narrow chassis, durable crawler tracks, and CAN bus control system, it provides stability, mobility, and intelligent operation—perfect for construction, maintenance, and facility work. Specification - Model: G-S12C Specifications - Max. Working height: 14m - Max. Platform height: 12m - Max. Working radius: 6.2m - Platform Dimensions: 0.9*0.7*1.1m - Length- stowed: 5.3m - Width-stowed: 0.75m - Height-stowed: 1.9m - Outrigger Footprint Length: 4m - Outrigger Footprint Width: 2.6m Productivity - Lift Capacity: 200kg - Platform Occupancy: 2 - Platform Rotation: ±80° - Jib Rotation: -90°-0 - Turntable Rotation: 355° - Drive Speed- stowed: 1.5km/h - Gradeability: 25% - Max. Working Angle: 10° - Weight: 1880kg Power - LFP Battery: 48V/230Ah - Pump Motor: 6kw - Control Voltage: 12V - Driving motor: 2.5kw - Charger: 48V/20A - Hydraulic oil tank: 20L - CAN Bus Technology: Enables efficient data transmission for seamless operation. - Turntable Control Box: Displays real-time status and fault diagnostics. - Telescopic Boom + Jib Arm: Provides greater flexibility and extended reach. - ±80° Rotating High-Strength Aluminum Platform: Easily detachable for improved adaptability. - 360° Rotating Turntable: Equipped with a worm gear reducer for smooth and precise rotation. - High-Durability Tracks: Enhanced wear resistance for stable movement on various terrains. - One-Touch Outrigger Leveling (Optional): Simplifies setup for quick and efficient operation. - Ultra-Narrow Chassis: Excellent maneuverability in confined spaces, maximizing the working range.
