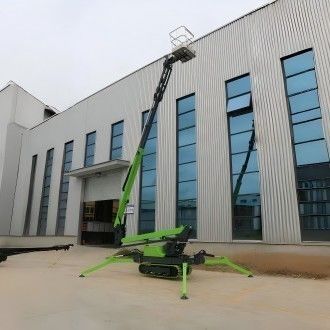

Crawler spider lift G-S16C

electricall-terrainfor construction

The 16m Crawler Spider Boom Lift features a platform height of 15.7m and a working height of 17.7m, ideal for high-altitude operations in confined or rugged areas. Its telescopic boom with jib arm offers extended reach and flexible positioning. The ±80° rotatable aluminum platform is quick to detach, while the 360° rotating turntable with a worm gear reducer ensures smooth and precise movement. With a compact chassis, high-wear-resistance crawler tracks, and a CAN bus control system for real-time status and diagnostics, this model delivers safe, stable, and intelligent performance for construction, maintenance, and facility management. - **Model**: G-S16C **Specifications** - Max. Working height: 17.7m - Max. Platform height: 15.7m - Max. Working radius: 8.1m - Platform Dimensions: 1.1*0.7*1.1m - Stowed Length: 5.3m - Stowed Width: 0.85m - Stowed Height: 2.0m - Outrigger Footprint Length: 4m - Outrigger Footprint Width: 4m **Productivity** - Lift Capacity: 200kg - Platform Occupancy: 2 - Platform Rotation: ±80° - Jib Rotation: -90°-0 - Turntable Rotation: 360° non continuous - Drive Speed (stowed): 3 km/h - Gradeability: 25% - Max. Working Angle: 10° - Weight: 2200kg **Power** - LFP Battery: 48V/300Ah - Pump Motor: 4.5kw - Control Voltage: 12V - Driving motor: 2.5kw - Charger: 48V/35A - Hydraulic oil tank: 20L - **CAN Bus Technology**: Enables efficient data transmission for seamless operation. - **Turntable Control Box**: Displays real-time status and fault diagnostics. - **Telescopic Boom + Jib Arm**: Provides greater flexibility and extended reach. - **±80° Rotating High-Strength Aluminum Platform**: Easily detachable for improved adaptability. - **360° Rotating Turntable**: Equipped with a worm gear reducer for smooth and precise rotation. - **High-Durability Tracks**: Enhanced wear resistance for stable movement on various terrains. - **One-Touch Outrigger Leveling (Optional)**: Simplifies setup for quick and efficient operation. - **Ultra-Narrow Chassis**: Excellent maneuverability in confined spaces, maximizing the working range.
