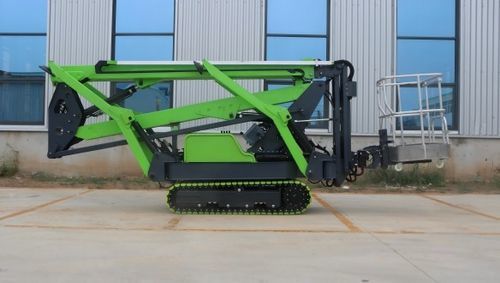

Crawler spider lift G-S14C

electricfor constructionfor industrial applications

The 14m Crawler Spider Boom Lift offers a platform height of 13.7m and a working height of 15.7m, ideal for high-access tasks in narrow or complex environments. Equipped with a telescopic boom and jib arm, it ensures flexible and efficient operation. The ±80° rotatable high-strength aluminum platform is easy to detach, while the 360° turntable with worm gear reducer allows smooth, precise rotation. Its ultra-narrow chassis, high-durability crawler tracks, and CAN bus control system ensure excellent terrain adaptability, smart diagnostics, and reliable performance for construction, maintenance, and industrial use. Specifications - Max. Working height: 15.7m - Max. Platform height: 13.7m - Max. Working radius: 7.6m - Platform Dimensions: 1.1*0.7*1.1m - Length- stowed: 4.8m - Width-stowed: 0.85m - Height-stowed: 2.0m - Outrigger Footprint Length: 4m - Outrigger Footprint Width: 4m Productivity - Lift Capacity: 200kg - Platform Occupancy: 2 - Platform Rotation: ±80° - Jib Rotation: -90°-0 - Turntable Rotation: 360° non continuous - Drive Speed- stowed: 3 km/h - Gradeability: 25% - Max. Working Angle: 10° - Weight: 1900kg Power - LFP Battery: 48V/300Ah - Pump Motor: 4.5kw - Control Voltage: 12V - Driving motor: 2.5kw - Charger: 48V/35A - Hydraulic oil tank: 20L - CAN Bus Technology: Enables efficient data transmission for seamless operation. - Turntable Control Box: Displays real-time status and fault diagnostics. - Telescopic Boom + Jib Arm: Provides greater flexibility and extended reach. - ±80° Rotating High-Strength Aluminum Platform: Easily detachable for improved adaptability. - 360° Rotating Turntable: Equipped with a worm gear reducer for smooth and precise rotation. - High-Durability Tracks: Enhanced wear resistance for stable movement on various terrains. - One-Touch Outrigger Leveling (Optional): Simplifies setup for quick and efficient operation. - Ultra-Narrow Chassis: Excellent maneuverability in confined spaces, maximizing the working range.
