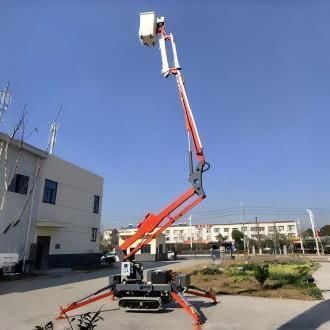

Crawler spider lift G-X18D

electrichydraulic

This insulated crawler spider boom lift, with a maximum working height of 18 meters and platform height of 16 meters, is designed for complex environments and electrical work. It features dual power systems, adjustable rubber tracks, and frog-leg outriggers with one-touch leveling, making it ideal for narrow or uneven terrain. The insulated boom ensures operator safety near power lines. With balance valves and an electric emergency pump, the hydraulic system remains safe and stable even in case of hose failure—making it a reliable choice for aerial operations. - Model: G-X18D - Max. Working height: 18m - Max. Platform height: 16m - Max. Working radius: 7.2m - Platform Dimensions: 1.25*0.65m - Length- stowed: 6.05m - Width-stowed: 1.45m - Height-stowed: 1.99m - Outrigger Footprint Length: 4.02m - Outrigger Footprint Width: 2.94m - Lift Capacity: 200kg - Platform Occupancy: 2 - Platform Rotation: ±80° - Jib Rotation: 45° - Turntable Rotation: 359° - Drive Speed- stowed: 1.5km/h - Gradeability: 30% - Max. Working Angle: 15° - Weight: 2380kg - Insulation Voltage Rating: 10 kV - Insulated Platform AC Withstand Voltage: (0.4 m, 50 kV/1 min) No flashover or breakdown - Insulated Boom Power Frequency Withstand Voltage: (0.4 m, 50 kV/1 min) No flashover or breakdown - Vehicle AC Leakage Current (1 m, 20 kV): ≤500 µA - Insulated Boom Material: FRP Insulating Material - Power System (Standard): Gasoline Engine (Briggs & Stratton) + 220V/50Hz AC Features: - Robust & Reliable: The entire machine features a durable design with superior performance, ensuring long-term reliability. - Low Maintenance: Equipped with self-lubricating bushings, it minimizes routine maintenance requirements. - Advanced Stabilization: The frog-leg style outriggers offer one-touch leveling and are fitted with safety locks for secure operation. - Dual Power System: Operates on two independent power sources for enhanced stability and smooth, stepless hydraulic speed control. - Hydraulic Safety: Both boom and outrigger cylinders are equipped with balance valves, hydraulic locks, and an electric emergency pump, ensuring system safety even in the event of a hose failure. - Adjustable Rubber Tracks: Each rubber track operates independently, and the adjustable width makes it ideal for tight or rugged working conditions, including narrow alleyways and uneven terrain. - Convenient Access: The work platform can be lowered to the ground, allowing safe and easy entry and exit for operators. - Insulated Boom Design: The insulated secondary boom ensures operator safety when working near electrical lines.
