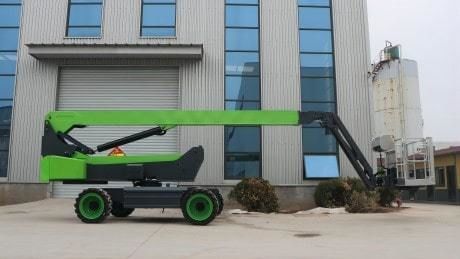

Mobile telescopic boom lift G-J24Li

wheeledself-propelledelectric

Introducing the G-J24Li Electric Telescopic Boom Lifts, offering unmatched aerial productivity with a maximum working height of 26.2 meters. Perfect for high-rise construction, telecom tower maintenance, and industrial tasks, the G-J24Li features IP65 waterproofing for all-weather durability. Its electric powertrain ensures eco-friendly operation, while four-wheel drive and balanced axles provide superior traction and stability on any terrain. Enhance your productivity and safety with the versatile G-J24Li Electric Telescopic Boom Lifts. - Parameters - Model: G-J24Li - Specifications - Max. Working height: 26.2m - Max. Platform height: 24.2m - Max. Working radius: 20m - Platform Dimensions: 2.4*0.9m - Length (stowed): 10.9m - Width (stowed): 2.49m - Height (stowed): 2.92m - Wheelbase: 3.2m - Ground clearance – center: 0.3m - Weight: 15100kg - Productivity - Max. Lift capacity: 300kg/450kg - Number of platform occupants: 3 - Platform rotation: ±80° - Turntable rotation: 360° Continuous - Jib rotation (up/down): ±70° - Drive speed – stowed: 5.5km/h - Gradeability – stowed: 45% - Max. Working angle (Tilt sensor activation): 3° - Turning radius (outside): 6.5m - Drive and steer mode: 4*2 - Power - Battery: 80V/500Ah - Control voltage: 12V - Pump motor: 30kw - Drive motor: 5.2kw - Lithium Battery: Standard - The Bosch Rexroth platform control panel is equipped with proportional joystick controls and an emergency stop button. - The Bosch Rexroth ground control panel features an IP65 waterproof design and an emergency stop button. - The boom utilizes self-weight lowering technology and a load-sensitive hydraulic system to ensure smooth and energy-efficient operation. - The platform can automatically level itself within a ±80° rotation range. - The 360° continuous rotation of the turntable allows the platform to reach worksites with enhanced flexibility. - Advanced four-wheel AC drive technology combined with steering differential control significantly reduces tire wear and motor overload rates. - Equipped with solid tires, skid-proof and explosion-proof with longer lifetime, providing a stable and labor-saving operation. - The international brand drag chain of the telescopic boom offers safety protection and guiding capabilities for the cables inside the booms.
