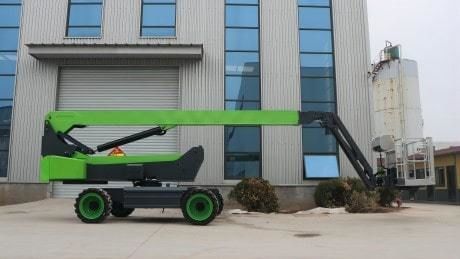

Self-propelled telescopic boom lift G-J18

wheeledelectricfor construction

Our G-J18 Telescopic Boom Lifts are specifically designed to meet your high-reach needs with unparalleled precision and efficiency. Unlike Articulating Boom Lifts, which are perfect for maneuvering around obstacles, the G-J18 features a straight extendable arm, making it ideal for tasks requiring direct vertical and horizontal reach. With an impressive maximum working height of 20.5 meters, the G-J18 excels in construction, maintenance, telecommunications, and other applications where height is critical. Explore the specifications below to discover how the G-J18 Telescopic Boom Lifts can enhance your aerial work capabilities. - Parameters - Model: G-J18 - Specifications - Max. Working height: 20.5m - Max. Platform height: 18.5m - Max. Working radius: 13.2m - Platform Dimensions: 1.8*0.75m - Length (stowed): 9.8m - Width (stowed): 2.49m - Height (stowed): 2.26m - Wheelbase: 2.5m - Ground clearance – center: 0.32m - Weight: 8520kg - Productivity - Max. Lift capacity: 300kg - Number of platform occupants: 3 - Platform rotation: ±80° - Turntable rotation: 360° Continuous - Jib rotation (up/down): ±70° - Drive speed – stowed: 4.8km/h - Gradeability – stowed: 45% - Max. Working angle (Tilt sensor activation): 3° - Turning radius (outside): 5m - Drive and steer mode: 4×2 - Power - Battery: 48V/320Ah - Control voltage: 12V - Pump motor: 12kw - Drive motor: 3.3kw - Optional - Lithium Battery: Optional - Power Plus Generator: Optional - The Bosch Rexroth platform control panel is equipped with proportional joystick controls and an emergency stop button. - The Bosch Rexroth ground control panel features an IP65 waterproof design and an emergency stop button. - The boom utilizes self-weight lowering technology and a load-sensitive hydraulic system to ensure smooth and energy-efficient operation. - The platform can automatically level itself within a ±80° rotation range. - The 360° continuous rotation of the turntable allows the platform to reach worksites with enhanced flexibility. - Advanced four-wheel AC drive technology combined with steering differential control significantly reduces tire wear and motor overload rates. - Equipped with solid tires, skid-proof and explosion-proof with longer lifetime, providing a stable and labor-saving operation. - The international brand drag chain of the telescopic boom offers safety protection and guiding capabilities for the cables inside the booms.
