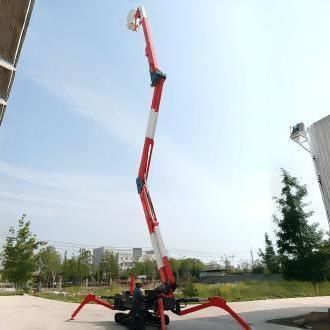

Crawler spider lift G-X23E

electrichydraulicdiesel engine

This Insulated Crawler Spider Boom Lift offers a 23m working height and 21m platform height, designed for live-line operations up to 66kV. It is powered by an 18.2kW diesel engine and 220V mains power. Key insulation specs include: - Boom section (0.7m): 141kV/1min, no flashover, breakdown, or overheating - Boom section (1.5m): 105kV/1min, leakage current ≤200μA - Base boom & platform (0.4m): 50kV/1min, no flashover or overheating - Full vehicle test (1.5m): 141kV/1min, fully passed Parameters: - Model: G-X23E Specifications: - Max. Working height: 23m - Max. Platform height: 21m - Max. Working radius: 9.8m - Platform Dimensions: 0.6×0.6×1.0m - Length- stowed: 7.46m - Width-stowed: 0.89m - Height-stowed: 2.1m - Effective Insulation Length of Upper Boom: ≥1.0m - Effective Insulation Length of Lower Boom: ≥0.3m Productivity: - Lift Capacity: 200kg - Platform Occupancy: 2 - Platform Rotation: ±80° - Jib Rotation: 45° - Turntable Rotation: 360° - Drive Speed- stowed: 2.1km/h - Gradeability: 30% - Max. Working Angle: 15° - Weight: 4800kg Power: - Insulation Voltage Rating: 66 kV - Boom Material: FRP Insulating Material Features: - Frog-Leg Outriggers – One-touch automatic leveling with outrigger safety locks for enhanced stability. - Dual Power System – Stable performance with stepless hydraulic speed control for smooth operation. - Hydraulic Safety – Boom and outrigger cylinders equipped with balance valves, hydraulic locks, and an electric emergency pump to ensure system safety even in the event of hose failure. - Rubber Tracks – Independently operated and width-adjustable tracks allow the machine to operate efficiently in narrow streets and extremely complex or harsh environments. - Ground-Level Work Basket – Platform can be lowered to the ground for easy and safe entry/exit. - Dual Insulated Boom Design – Upper and lower arms are insulated to ensure operator safety during live-line work. - Upper Insulated Control System – Provides additional protection for operators working on live lines and effectively prevents surface creepage on the platform. - Electrical Protective Cover on Upper Boom – Adds over 1.0 meter of effective insulation length. Even when the insulated boom is fully retracted, insulation performance is maintained.
