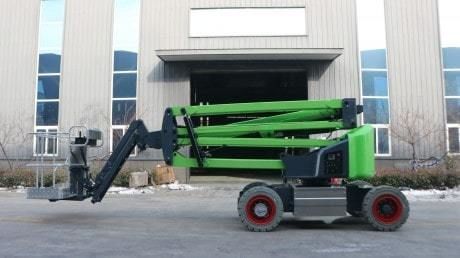

Self-propelled articulated boom lift G-V14

electricfor constructionindoor

Our G-V14 Articulating Boom Lifts are the perfect solution for your mid-height aerial work needs. With a maximum working height of 15.8 meters, they excel in various applications such as construction, decoration, telecommunications, advertisement placement, and airport maintenance. This versatile and reliable lift offers superior performance and safety features, making it an excellent choice for professionals. Specification - Model: G-V14 Specifications - Max. Working height: 15.8m - Max. Platform height: 13.8m - Max. up and over clearance: 7.0m - Max. Working radius: 7.5m - Platform width: 0.76m - Platform length: 1.4m - Height – stowed: 2.0m - Length – stowed: 6.5m - Width: 1.76m - Wheelbase: 2.0m - Ground clearance – center: 0.25m Productivity - Max. Lift capacity: 230kg - Number of platform occupants: 2 - Platform rotation: ±80° - Turntable rotation: 355° - Vertical jib rotation (up/down): ±70° - Drive speed – stowed: 5.1km/h - Gradeability – stowed: 35% - Max. Working angle (Tilt sensor activation): 3° - Turning radius (outside): 3.2m - Drive and steer: 2×2 - Weight: 5960kg Power - Battery: 48V/320Ah - Control voltage: 24V - Pump motor: 4kw - Drive motor: 3.3kw Features - The product is lightweight and energy-saving, and has compact design with excellent battery life. - Σ-shaped boom with compact structure and flexible extension can realize vertical lifting and horizontal extension, and has strong obstacle-surpassing ability. - 160° rotatable platform provides a larger working range, while the narrow turntable with compact layout improves work efficiency. - The platform control panel is PG and Bosch Rexroth brand, which is the same as the ground control. User-friendly design with safety factors considered ensures a reliable work performance. - International brand drag chain of the telescopic jib provides safety protection and guiding capabilities for the cables inside the booms and prolongs the service life of the cables. - Equipped with solid tires, skid-proof and explosion-proof with longer lifetime, providing a stable and labor-saving operation.
