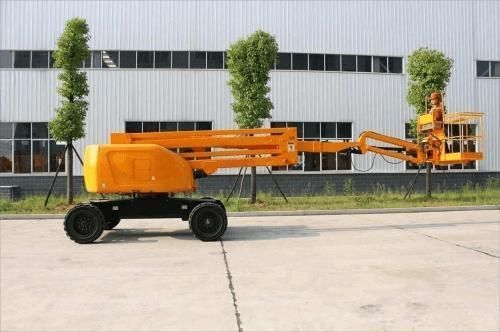

Mobile articulated boom lift G-RZ20

self-propelledwheeleddiesel

The 20-meter diesel articulating boom lift is engineered to deliver exceptional performance with a maximum working height of 20.2 meters. Its robust diesel engine provides powerful lifting capabilities, making it ideal for reaching elevated and hard-to-access areas. The articulating boom allows for precise maneuvering around obstacles, while its durable construction and high-strength tires ensure reliable operation in rugged and outdoor environments. Designed for versatility and stability, this lift is perfect for demanding construction, maintenance, and industrial tasks. - Model: G-RZ20 - Max. Working height: 20.2m - Max. Platform height: 18.2m - Max. up and over clearance: 8.3m - Horizontal outreach: 11.6m - Platform width: 0.76m - Platform length: 1.83m - Height – stowed: 2.5m - Length – stowed: 8.23m - Width: 2.38m - Wheelbase: 2.4m - Ground clearance – center: 0.4m Productivity: - Max. Lift capacity: 230kg - Number of platform occupants: 2 - Platform rotation: ±180° - Turntable rotation: 355° - Drive speed – raised: 1.1km/h - Drive speed – stowed: 4.2km/h - Gradeability – stowed: 45% - Turning radius (inside): 1.82m - Turning radius (outside): 4.85m - Drive and steer: 4×4×2 - Weight: 8800kg Power: - Fuel tank capacity: 100L - Control voltage: 12V - Motor: Yanmar /Kubota - Rated engine power: 36kw/2400rpm - Diesel engines offer robust performance, high fuel efficiency, and durability for long-duration heavy-duty work in challenging environments. - The use of PLC and CAN bus control simplifies wiring and facilitates maintenance, while metal aviation connectors with an IP65 protection rating ensure durability and resistance to dust and water. - The platform’s automatic leveling function, ensuring the tilt angle relative to the horizontal plane is no greater than 1.5°, provides enhanced safety, stability, and precision during operation. - The platform control panel is the same as the ground control. User-friendly design with safety factors considered ensures a reliable work performance. - The boom features dust and sand protection at the boom head and cylinder piston rod, and it is equipped with marine-grade, high-strength engineering plastic drag chains, making it suitable for harsh working environments. - The tires are designed for durability and traction, providing excellent performance and stability on rough and uneven terrain.
