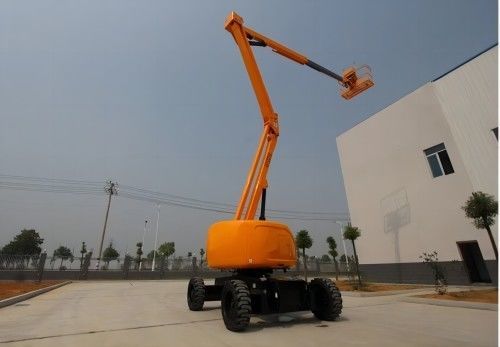

Self-propelled articulated boom lift G-RZ18

wheeledmobilediesel

The 18-meter diesel articulating boom lift provides robust performance and versatility for outdoor tasks. With its powerful diesel engine and articulating boom, it offers excellent reach and maneuverability, allowing access to high and hard-to-reach areas. Designed for durability, it features high-strength tires, dust and sand protection, and advanced control systems, making it ideal for construction and maintenance work in challenging environments. - Model: G-RZ18 Specifications: - Max. Working height: 18m - Max. Platform height: 16m - Max. up and over clearance: 8.25m - Horizontal outreach: 9.55m - Platform width: 0.76m - Platform length: 1.83m - Height – stowed: 2.4m - Length – stowed: 7.26m - Width: 2.28m - Wheelbase: 2.4m - Ground clearance – center: 0.4m Productivity: - Max. Lift capacity: 230kg - Number of platform occupants: 2 - Platform rotation: ±180° - Turntable rotation: 355° - Drive speed – raised: 0.8km/h - Drive speed – stowed: 4.4km/h - Gradeability – stowed: 45% - Turning radius (inside): 1.87m - Turning radius (outside): 4.8m - Drive and steer: 4×4×2 - Weight: 8100kg Power: - Fuel tank capacity: 100L - Control voltage: 12V - Motor: Yanmar /Kubota - Rated engine power: 36kw/2400rpm Features: - Diesel engines offer robust performance, high fuel efficiency, and durability for long-duration heavy-duty work in challenging environments. - The use of PLC and CAN bus control simplifies wiring and facilitates maintenance, while metal aviation connectors with an IP65 protection rating ensure durability and resistance to dust and water. - The platform’s automatic leveling function, ensuring the tilt angle relative to the horizontal plane is no greater than 1.5°, provides enhanced safety, stability, and precision during operation. - The platform control panel is the same as the ground control. User-friendly design with safety factors considered ensures a reliable work performance. - The boom features dust and sand protection at the boom head and cylinder piston rod, and it is equipped with marine-grade, high-strength engineering plastic drag chains, making it suitable for harsh working environments. - The tires are designed for durability and traction, providing excellent performance and stability on rough and uneven terrain.
