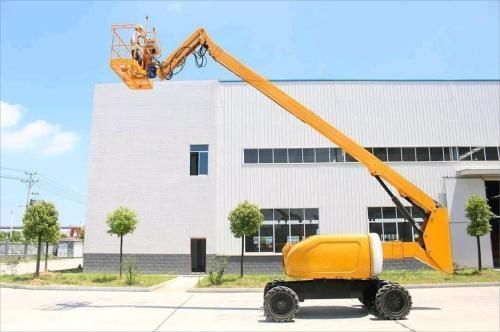

Self-propelled articulated boom lift G-RZ22

mobilewheeleddiesel

The 22-meter diesel articulating boom lift is designed for optimal performance and versatility, offering a maximum working height of 22 meters. Powered by a reliable diesel engine, it provides exceptional reach and flexibility, allowing operators to easily navigate around obstacles and access difficult-to-reach areas. Built for durability, the lift features rugged tires and advanced controls, making it well-suited for outdoor and demanding environments. Ideal for construction, maintenance, and industrial applications, this lift combines power, stability, and precision to tackle the toughest jobs. - Specification - Model: G-RZ22 - Specifications - Max. Working height: 22m - Max. Platform height: 20m - Max. up and over clearance: 12m - Horizontal outreach: 11.6m - Platform width: 0.76m - Platform length: 1.83m - Height – stowed: 2.55m - Length – stowed: 8.54m - Width: 2.38m - Wheelbase: 2.4m - Ground clearance – center: 0.4m - Productivity - Max. Lift capacity: 230kg - Number of platform occupants: 2 - Platform rotation: 180° - Turntable rotation: 360° continuous - Drive speed – raised: 1.1km/h - Drive speed – stowed: (2WD)6.3km/h /(4WD)4.2km/h - Gradeability – stowed: (2WD)30% / (4WD)45% - Turning radius (inside): 2.66m - Turning radius (outside): 5.66m - Drive and steer: 4×4×2 - Weight: (2WD) 9380kg /(4WD) 9500kg - Power - Fuel tank capacity: 100L - Control voltage: 12V - Motor: Yanmar /Kubota - Rated engine power: 36kw/2400rpm - Features - Diesel engines offer robust performance, high fuel efficiency, and durability for long-duration heavy-duty work in challenging environments. - The use of PLC and CAN bus control simplifies wiring and facilitates maintenance, while metal aviation connectors with an IP65 protection rating ensure durability and resistance to dust and water. - The platform’s automatic leveling function, ensuring the tilt angle relative to the horizontal plane is no greater than 1.5°, provides enhanced safety, stability, and precision during operation. - The platform control panel is the same as the ground control. User-friendly design with safety factors considered ensures a reliable work performance. - The boom features dust and sand protection at the boom head and cylinder piston rod, and it is equipped with marine-grade, high-strength engineering plastic drag chains, making it suitable for harsh working environments. - The tires are designed for durability and traction, providing excellent performance and stability on rough and uneven terrain.
