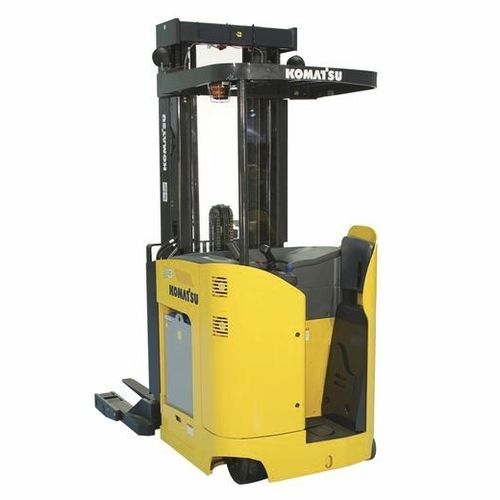

Electric forklift truck FR50

electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
electric forklift truck
Add to favorites
Compare this product


Motor type
loading, narrow-aisle
Other characteristics
high-performance, high-speed
Carrying capacity

3,000 lb, 3,500 lb, 4,500 lb (1,360.8 kg)

Lifting height

Max.: 260 in

Min.: 95 in

Overall width

43 in

Overall length

96.1 in, 97.6 in, 103.9 in

Weight without load

6,005 lb, 6,420 lb, 6,715 lb (2,723.8 kg)

Height of mast when lowered

95 in

Free lift

47 in, 47.2 in

Overall height with mast raised

93.5 in

Fork carriage width

31.5 in

Ground clearance under mast with load

2 in

Ground clearance at center of wheelbase with load

2 in

Turning circle radius

69.4 in, 70.4 in, 72.4 in

Travel speed

6.4 mph, 7.2 mph (10.3 km/h)

Rated output

8 ch (8 hp)


Operating costs as small as its footprint Need to store and move a lot of stock in a small space? Stand-up electric reach-type forklifts that excel at narrow aisle material handling, with a host of features designed to help extend run times, improve operator efficiency and minimize downtime, shift after shift. Productivity-enhancing diagnostics and features Precise handling to protect stock Engineered with operator comfort in mind Features and benefits High performance with advanced AC The FR50’s advanced and intelligent AC drive and hydraulic motor help control critical functions to extend run times, eliminate motor brush checks or replacements, and deliver higher efficiency and longer life versus DC motors. Dial in your application needs Performance settings can be adjusted using the onboard dash keypad to dial in optimal performance parameters for your application needs. In addition to diagnostics, the keypad displays state-of-battery charge, time of day and travel speed. Regenerative, maintenance-free braking In addition to reversing the drive system to brake, the electromagnetic disc braking system provides smooth and consistent stops when releasing the brake pedal. Plus, it’s a regenerative system that re-captures current. Fast and easy to service Built-in analyzer provides data on fault detection and other diagnostics. The trucks’ design enables easy access to the control system and drive motor, drive unit, electrical disc brake, and steer-by-wire system, and facilitates fast wheel/tire changes.
