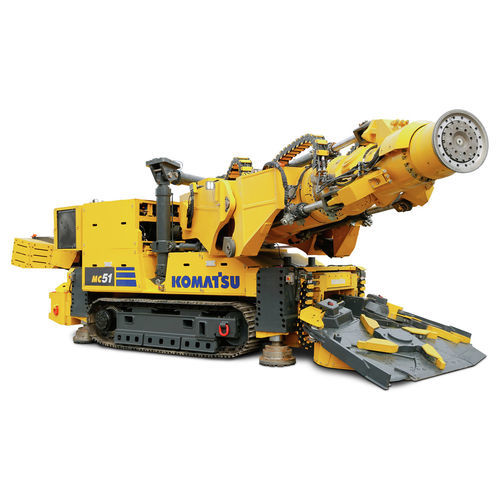

Continuous miner MC51

Overview
The MC51 is an agile, compact continuous miner designed for hard rock tunnelling and excavation. At 13.2 m (43 ft.) long, the machine can rotate on its center axis within approximately 6 m for fast deployment in confined headings. It employs Komatsu DynaCut technology, a dynamic undercutting method that produces consistent rock fragment sizes for efficient handling and continuous operation.

Highlights

• 100% clean up — no secondary material removal required
• Up to 50% less equipment required versus conventional batch processes
• Fully electric, remotely controlled system for safer operations

Features and benefits

• Fully remote controlled — Remote positioning sensors, onboard cameras and a touchscreen tablet enable precise navigation and keep operators away from the cutting face.
• Fully electric system — Eliminates onboard diesel, reducing underground ventilation needs. Low power requirement: 320 kW (≈430 HP) (1000 V, 50 & 60 Hz), enabling integration into most mine power systems.
• Flexible cutting profile — Designed to cut a 5 m x 5 m tunnel profile with ±50 mm accuracy along the excavation length. Capable of cutting varied rock types and negotiating tight corners up to 250 MPa rock hardness.
• Excellent tunnel quality — DynaCut produces accurate, clean profiles that can reduce roof and ground support requirements. Integrated conveyor captures cut material and supports proper water drainage without need for concrete or road fill.
• DynaCut technology — Dynamic undercutting exploits tensile weaknesses in rock to deliver smaller, uniform fragments for superior material handling productivity.
• Continuous vs. batch — Continuous mining with automation increases process control and can reduce the number of ancillary machines by up to 50% compared with traditional batch cycles.

Technical specifications

• L x W x H (m): 13.2 x 4.2 x 3.8
• L x W x H (ft): 41' x 13'7" x 11'8"
• Maximum tunnel size (m): 5.2 x 5.2
• Maximum tunnel size (ft): 17'1" x 17'1"
• Remove cut material up to (m3/hr): 60
• Remove cut material up to (yd3/hr): 78
• Power requirement: 320 kW (≈430 HP) — 1000 V, 50 & 60 Hz
• Machine length (as stated): 13.2 m (43 ft.)
• Turning radius / rotation: can turn on its center axis within ~6 m for deployment
• Rock hardness capability: up to 250 MPa
