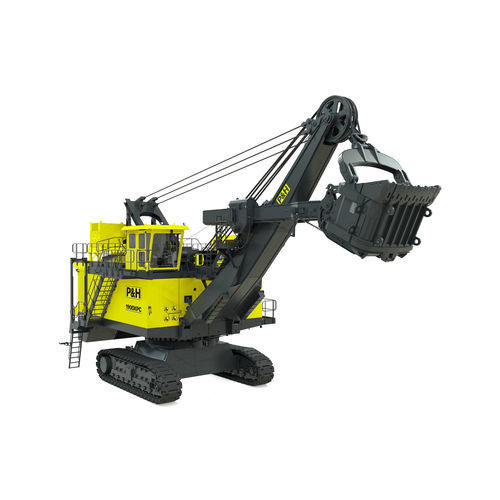

Crawler rope shovel 1900XPC

trackedmining and quarryingfor mining

Overview
The 1900XPC electric rope shovel delivers the performance expected from larger P&H shovels in a smaller footprint. Equipped with the Centurion electrical control system, it provides strong bail pull and smooth, rapid dipper movement under heavy digging conditions.

Key highlights

• Up to 22% less power consumed vs. 1900AL.
• Up to 46% less CO2 released per tonne of material moved compared to equivalent HEX machines.

Features and benefits

• Centurion control system and AC drives — Delivers performance and reliability from larger 4100XPC-series shovels in a compact package using P&H Centurion controls and ABB Mining Duty drives.
• Dual planetary propel — Improves machine performance and reduces maintenance with dual planetary transmissions and proven P&H components.
• Twin leg handle — Enables the shovel to penetrate hard materials effectively by focusing force on the bank rather than twisting the dipper.
• Engineered for performance — Designed with advanced simulation tools and high-quality steels; engineered life target approximately 120,000 hours.
• Delta style undercarriage — Proven shoe and tumbler design that minimizes maintenance and supports operation in loose-track configurations.
• Adapted for developing markets — Configurable footprint and supply-chain flexibility to support global deployment, with consideration for import taxes and duties.

Resources

• Download spec sheet (PDF available).
• Related blog: Choosing the right electric rope shovel for your mine.
• Financing information.
• Order parts.

Technical specifications

• Nominal payload (metric tons): 18
• Nominal payload (short tons): 20
• Nominal dipper capacity (m³): 10.7
• Range dipper capacity (m³): 7.5 - 19.1
• Nominal dipper capacity (yd³): 14
• Range dipper capacity (yd³): 10 - 25
• Rated suspended load: 37.2 mt (41 st)
• Production (MTPH): 1,348 - 1,797
• Production (TPH): 1,486 - 1,981
• Overall width: 8.05 m (26 ft 5 in)
• Overall length: 10.36 m (34 ft)
• Height over gantry: 10.11 m (33 ft 2 in)
• Width of crawler shoes: 1,066 or 1,219 mm (42 or 48 in)
• Length of crawlers: 7.62 m (25 ft)
• Ground clearance: 0.66 m (2 ft 2 in)
• Height - ground to bottom of counterweight slabs: 1.7 m (5 ft 7 in)
• Radius of cut: 17.8 m (58 ft 6 in)
• Dumping height (door open): 8.2 m (27 ft) — heights vary with dipper type
• Floor level radius: 11.6 m (38 ft)
• Tail swing radius: 7.0 m (23 ft)
• Operator eye level: 7.4 m (24 ft 3 in)
• Height of cut: 13.0 m (42 ft 6 in)
• Design life target: built with steels and design practices aimed at long service life (~120,000 hours)
