Crawler rope shovel 2300XPC AC

trackedmining and quarrying

Product overview

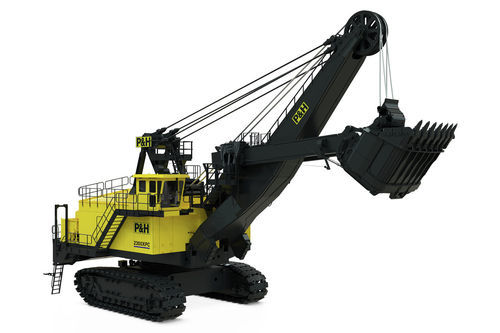

P&H 2300XPC combines the functionality of a high‑performance rope shovel with the practicality and footprint of a smaller machine. Engineered for high‑production mining operations, the series is suited to coal, copper, iron ore and gold sites worldwide.

• Up to 51% less CO2 release per tonne of material moved compared to equivalent HEX machines
• 12% lower cost per tonne of material moved compared to equivalent HEX machines

Key features and benefits

• Centurion control system and AC drives: Performance and operational reliability derived from the larger 4100XPC series, integrated with ABB Mining Duty AC drives for efficient electrical control.
• Dual planetary propel: Dual planetary transmissions for improved propel performance, reduced maintenance and proven P&H reliability.
• Twin leg handle: Twin‑leg dipper handle design improves penetration of hard banks and reduces dipper rotation under load.
• Engineered for performance: Designed using advanced simulation tools and manufactured in high‑strength steels for extended service life.
• Delta style undercarriage: Proven shoe and tumbler arrangement that minimizes maintenance and permits operation with a loose track configuration.
• Adaptable to developing markets: Scalable footprint and global supply chain options to address import duties and local support requirements.

Resources (available materials)

• Product brochure (PDF)
• Press release
• Financing information
• Order parts information

Specifications

• Category: Electric rope shovels
• Nominal payload (metric tons): 45
• Nominal payload (short tons): 50
• Dipper capacity (m³): 18 - 25
• Dipper capacity (yd³): 24 - 33
• Production (MTPH): 3 365 - 4 488
• Production (TPH): 3,710 - 4,947
• Nominal dipper capacity (m³, SAE struck): 18.3 - 25.5
• Optimum truck size (metric tons): 109 - 218
• Rated suspended load (mt): 96
• Rated suspended load (st): 106
• Radius of cut: 21.3 m (70 ft)
• Dumping height (door open): 8.5 m (28 ft) — heights shown with bail‑type dipper; heights vary with dipper type
• Floor level radius: 14.2 m (46 ft 7 in)
• Tail swing radius: 10.1 m (33 ft)
• Operator eye level: 7.9 m (26 ft)
• Height of cut: 13.5 m (44 ft 3 in)
• Supply voltage: 4,160 or 7,200 V 3 Phase, 60 Hz or 5,000, 6,000 or 6,600 V 3 Phase, 50 Hz (voltage per customer requirements)
• Supply transformer (minimum): 2,750 kVA (for 5,000, 6,000 or 6,600 V 3 phase, 50 Hz supply)
• Minimum short circuit VA available at shovel: 22 MVA (for 5,000, 6,000 or 6,600 V 3 phase, 50 Hz supply)
• Crowd: Powerband V‑belt drive between motor and gear case absorbs shock loads; first and second reduction gearing in enclosed gear case for splash lubrication; twin‑leg dipper handle with torsion box and rack and pinion drive provides inherent bank stability; spring‑set air release disc brake.
• Swing: Two modular P&H planetary gear cases transmit torque for fast cycle times; spring‑set air release disc brakes (one per motor); splash lube filtration system.
• Propel: Two P&H planetary gear cases independently transmit torque to drive sprockets; P&H Delta drive system with heavy duty cast crawler shoes; spring‑set air release disc brakes (one per motor).
• Hoist: All gearing housed in a single enclosed gear case with filtered and cooled oil feed; large hoist drum for extended rope bending life; ferrule becket system and dual electric tuggers standard; spring‑set air release disc brakes (one per motor).
