Large excavator 9020XPC

crawlermining and quarryingfor mining

Overview

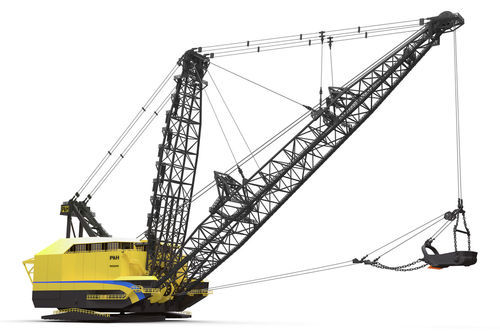

The P&H 9020XPC dragline is engineered for continuous heavy-duty material handling in large open-pit operations. Available with multiple boom lengths and bucket capacities, the machine combines a high-capacity tub, four-chord boom construction and a Centurion electronics platform to support reliable, efficient production and simplified monitoring.

Key features

• Ultra-strong tub distributes loads evenly for outstanding reliability
• A-frame engineered to effectively manage load forces
• Four-chord boom provides structural integrity to operate in tough conditions
• Electronics platform (Centurion control system) to help operators perform at peak efficiency and monitor dragline operation
• Highly engineered boom and A-frame deliver stability, excellent visibility of boom point sheaves and balanced axial working loads
• Designed with user input to improve safety, delivery, maintenance and inspection activities
• Comprehensive service support to lower total cost of ownership and optimize production

Design and construction highlights

• Tub engineered for long life and low maintenance; verti-shield welding joins on all intersection plates with one continuous weld resulting in minimal distortion
• Four wide-flanged chords with line pipe lacing for boom construction; boom material: HSLA
• Constant Contact Style fairlead and large-diameter sheaves for hoist/drag systems

Technical specifications

• Bucket capacity (m3): 85 - 122
• Bucket capacity (yd3): 110 - 160
• Boom length (m): 100 - 130
• Boom length (ft): 325 - 425
• Hoist ropes: 133.4 mm (5.25 in)
• Drag ropes: 133.4 mm (5.25 in)
• Hoist drum: 335 cm (132 in)
• Drag drum: 335 cm (132 in)
• Tub diameter: 26.8 m (88 ft)
• Ground pressure (tub): 138 kPa (20.1 psi)
• Tub/deck clearance: 2 m (6.7 ft)
• Rail circle diameter: 23.8 m (78 ft)
• Quantity and diameter of rollers: 171 x 406 mm (171 x 16 in)
• Pitch diameter, swing rack: 22.1 m (72.4 ft)
• Shoe size (maximum dimensions): 5.2 x 26.8 m (17 x 88 ft)
• Ground pressure (shoes): 225.2 kPa (32.6 psi) - note: shoe ground pressure assumes 90% of machine weight is on shoes
• Width across shoes: 38.1 m (125 ft)
• Clearance under shoes: 0.6 m (2 ft)
• Normal length of step: 2.3 m (7.5 ft)
• Net weight: 7 532.5 kg (16,606 Ibs)
• Counter weight: 439.1 kg (968 Ibs)
• Working weight: 7 971.6 kg (17,574 Ibs)
• Length machinery house: 38.9 m (127.5 ft)
• Width of machinery house: 36.4 m (119.3 ft)
• Rear end radius: 27.4 m (90 ft)
• Center pin to boom foot: 12.2 m (40 ft)
• Boom foot height: 5.9 m (19.5 ft)
• Rotating frame depth: 3.68 m (145 in)
• Suspended load rating: 344,736 kg (760,000 Ibs)
• Boom length working range: 113.1 m (371 ft)
• Boom angle (deg): 35.8
• Operating radius: 105.9 m (347.5 ft)
• Dig depth (practical): 64.8 m (212.5 ft)
• Dumping height: 48.1 m (161 ft)
