Crawler rope shovel 2800XPC

trackedmining and quarryingfor mining

Overview

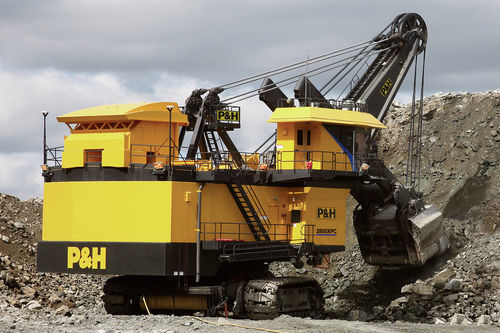

The 2800XPC electric rope shovel is engineered for heavy-duty loading and continuous operation in demanding mining environments. It combines an AC electrical system with a high-capacity dipper and a design focused on cycle efficiency and durability to deliver reliable material handling at low cost per tonne.

Key benefits

• Low cost per tonne loading through high production capability
• High cutting forces and stable digging performance

Features and benefits

• Big machine systems in a compact package: Advanced Centurion electrical controls and a rugged drive system deliver power and productivity comparable to larger machines.
• Stability throughout the dig cycle: Twin-leg dipper handle and torsion-box structure minimize twisting and improve penetration and stability on hard materials.
• Modern dipper technology: Low-maintenance latching system, optimized toe penetration, and compatibility to pass-match shovels with haul trucks.

Machine systems (descriptive)

• Crowd: Powerband V-belt drive between motor and gear case to absorb shock loads. Enclosed first and second reduction gearing for splash lubrication, simplified maintenance and extended component life. Twin-leg dipper handle with rack-and-pinion drive provides inherent stability. Spring-set air release disc brake.
• Swing: Two modular planetary gear cases transmit torque for fast cycle times. Spring-set air release disc brakes (one per motor). Splash lube filtration system.
• Propel: Propel-on-demand for rapid transition to propel mode. Two planetary gear cases independently driving sprockets. Delta drive low-tension sprocket drive with heavy-duty cast crawler shoes. Spring-set air release disc brakes (one per motor).
• Hoist: Single enclosed gear case with filtered and cooled oil plus splash lubrication. Large 56 in diameter hoist drum for extended rope bending life. Ferrule becket system and dual electric tuggers standard. Spring-set air release disc brakes (one per motor).

Resources (listed on page)

• Product brochure (2800XPC) available as a downloadable brochure (PDF).

Notes

• Payload and dipper capacity depend on application, material and configuration; provided values are indicative and application-dependent.
• Supply voltage and electrical configuration options are available to meet site requirements.

Technical specifications

• Category: Electric rope shovel
• Nominal payload (metric tons): 59
• Nominal payload (short tons): 65
• Dipper capacity (m3): 26.8 - 33.6
• Dipper capacity (yd3): 35 - 44
• Production (MTPH): 5 702 - 7 603
• Production (TPH): 6,285 - 8,381
• Rated suspended load (metric tonnes): 122.5
• Rated suspended load (short tons): 135
• Radius of cut: 24.2 m (79 ft. 3 in)
• Dumping height (door open): 9.1 m (30 ft)
• Floor level radius: 16.4 m (53 ft. 9 in)
• Tail swing radius: 9.9 m (32 ft. 6 in)
• Operator eye level: 9.6 m (31 ft. 4 in)
• Height of cut: 16.6 m (54 ft. 6 in)
• Supply voltage (options): 4,160 or 7,200 V 3 Phase, 60 Hz or 5,000, 6,000 or 6,600 V 3 Phase, 50 Hz
• Supply transformer (minimum): 2,750 kVA (for 5,000, 6,000 or 6,600 V 3 phase)
• Minimum short circuit VA available at shovel: 22 MVA (for 5,000, 6,000 or 6,600 V 3 phase)
• Supply voltage note: Voltage per customer requirements
