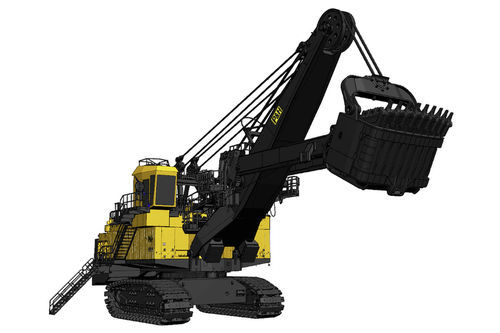

Crawler rope shovel 4100C AC

for mining

Overview
The 4100C electric rope shovel delivers reliable high-capacity loading for large-scale mining operations. With a nominal payload example of 81.6 mt (90 st) and a typical dipper capacity of 45.9 m3, the 4100C is an evolution of the proven 4100A platform.

Highlights

• Category: Electric rope shovels
• Nominal payload (metric tons): 72.5 - 82
• Nominal payload (short tons): 80 - 90
• Dipper capacity (m3): 41 - 49
• Dipper capacity (yd3): 54 - 64
• Production (MTPH): 7,184 - 9,579
• Production (TPH): 7,919 - 10,559

Capacity

• Nominal dipper capacity* (yd3): 60
• Nominal dipper capacity* (m3): 45.9
• Nominal dipper capacity SAE 2:1 (m3): 50.8
• Nominal dipper capacity SAE 2:1 (yd3): 66.4
• Optimum truck size (mt): 172 - 363
• Optimum truck size (st): 190 - 400
• Rated suspended load (mt): 154.2
• Rated suspended load (st): 170

Working ranges / Dimensions
Radius of cut (m): 24.7
Radius of cut (ft): 78 ft. 8 in
Dumping height (door open) (m): 9.1
Dumping height (door open) (ft): 31 ft. 0 in
Floor level radius (m): 16.4
Floor level radius (ft): 52 ft. 6 in
Tail swing radius (m): 10.2
Tail swing radius (ft): 32 ft. 3 in
Operator eye level (m): 9.5
Operator eye level (ft): 31 ft. 3 in
Height of cut (m): 15.8
Height of cut (ft): 51 ft. 10 in

Crowd

• Powerband V-belt drive between motor and gear case to absorb shock loads.
• First and second reduction gearing in an enclosed gear case for splash lubrication and simplified maintenance.
• Twin-leg dipper handle with torsion box and rack-and-pinion drive for bank stability and consistent digging performance.
• Spring-set air release disc brake for controlled crowd operation.
• Optional crowd filtration system available.

Swing

• Two modular P&H planetary gear cases with a single-piece forged swing gear to transmit torque for rapid cycle times.
• Spring-set air release disc brakes — one per motor.
• Optional swing filtration system available.

Power requirements

• Supply voltage: 7,200 V 3 Phase, 60 Hz or 5,000 / 6,000 / 6,600 V 3 Phase, 50 Hz
• Supply transformer: Minimum 3,000 kVA
• Minimum short circuit VA available at shovel: 25 MVA
• Supply voltage note: Voltage per customer requirements

Propel

• Two P&H planetary gear cases independently transmit torque to drive sprockets for required tractive effort.
• P&H Delta drive low-tension sprocket system with heavy-duty cast crawler shoes.
• Spring-set air release disc brakes — one per motor.

Hoist

• All gearing housed in a single enclosed gear case with filtered oil circulation for reliable splash lubrication.
• Large 65" diameter hoist drum for extended rope bending life.
• Ferrule becket system and dual electric tuggers standard for efficient rope change.
• Spring-set air release disc brakes — one per motor.

Technology

• Argus – Argus Payload Monitoring System weighs each bucket in real time to improve loading accuracy and operator benchmarking.
• ProVision – High-precision GNSS machine guidance (up to 1 cm accuracy) for accurate digging and truck spotting.
• MineCare – Maintenance Management System combining equipment health monitoring with cloud analytics for advanced issue detection.
• DISPATCH – Fleet Management System optimizing load-and-haul cycles to reduce queue times and improve production monitoring.
• Payload 2 – Tool to help operators consistently hit target truck loads.

Technical specifications

• Model / SKU: 4100C AC
• Brand: Komatsu
• Category: Electric rope shovels
• Nominal payload (metric tons): 72.5 - 82
• Nominal payload example (stated): 81.6 mt (90 st)
• Dipper capacity (m3): 41 - 49
• Dipper capacity typical (m3): 45.9
• Dipper capacity SAE 2:1 (m3): 50.8
• Dipper capacity (yd3): 54 - 64
• Nominal dipper capacity (yd3): 60
• Production (MTPH): 7,184 - 9,579
• Production (TPH): 7,919 - 10,559
• Optimum truck size (mt): 172 - 363
• Optimum truck size (st): 190 - 400
• Rated suspended load (mt): 154.2
• Rated suspended load (st): 170
• Radius of cut: 24.7 m / 78 ft. 8 in
• Dumping height (door open): 9.1 m / 31 ft. 0 in
• Floor level radius: 16.4 m / 52 ft. 6 in
• Tail swing radius: 10.2 m / 32 ft. 3 in
• Operator eye level: 9.5 m / 31 ft. 3 in
• Height of cut: 15.8 m / 51 ft. 10 in
• Supply voltage options: 7,200 V 3 Phase (60 Hz) or 5,000 / 6,000 / 6,600 V 3 Phase (50 Hz)
• Minimum supply transformer: 3,000 kVA
• Minimum short circuit VA at shovel: 25 MVA
• Notable systems: Argus, ProVision, MineCare, DISPATCH, Payload 2
