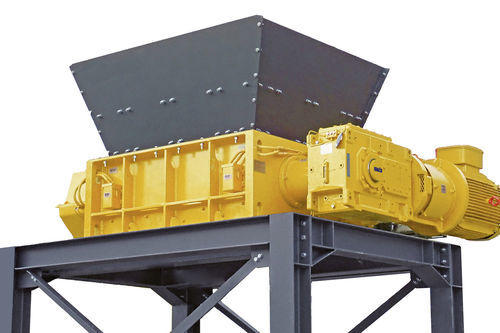

Toothed roller crusher iXRS 600

stationarycompactwet type

Overview
The iXRS 600 is a high-capacity primary sizer engineered for crushing tunnel spoil and industrial minerals. It combines wear-resistant pick technology with adjustable breaker bars to control product sizing while allowing undersize material to pass, reducing fines generation and improving downstream handling.

Wear-resistant pick technology
Pick designs are derived from shearers and continuous miners and are optimised for hard, abrasive and sticky materials. Replaceable picks and removable breaker bars allow on-site renewal and sizing adjustments to match application requirements.

• Wear parts designed for long life
• Versatility for multiple applications
• Crushes oversize while permitting undersize to pass, reducing fines

Features and benefits

• High capacity: Handles very large lump sizes to increase crushing ratios and reduces the number of crushing or dump stations required.
• Compact installation: Suitable for mobile or confined underground sites where other crushers cannot fit, lowering installation costs.
• Wet and sticky material handling: Frame-mounted cleaners limit material build-up; suitable for clay, marl and tunnel spoil.
• Efficiency and durability: Energy-efficient helical gear reducers, robust transmission components, automatic lubrication and extended-life picks reduce operating costs.
• Ingress protection: Outboard bearings with custom seals minimise water and dust ingress where water spraying or washing is used.
• Multiple pick geometries: Selection of pick shapes for hard, abrasive or sticky conditions, based on extensive feeder breaker and shearer experience.
• Replaceable picks: Shafts accept renewables picks rather than disposable components.
• Product size control: Adjustable, removable breaker bars and pick selection reduce transfer blockages at chutes and conveyors.
• Instrumentation: Bearing temperature and vibration monitoring plus locked-rotor detection to alert operators and protect against tramp metal damage.

Resources
Manufacturer product brochure available for download.

Technical specifications

• Capacity (MTPH): Up to 800
• Capacity (TPH): Up to 882
• Standard output sizes (mm): 150 or 200
• Standard output sizes (in): 6 or 8
• Application: Tunnel spoil and industrial minerals
• Mass (tonnes): 7 - 9
• Mass (tons): 7.7 - 9.9
• Roll spacing (mm): 600
• Roll spacing (in): 23.6
• Feed size (mm): Less than 800
• Feed size (in): Less than 31.5
• Roll length range (mm): 1000 - 1500
• Roll length range (in): 39.4 - 59
