Electric LHD WX14LPE

hydraulicfor minesfor undergroud works

Overview

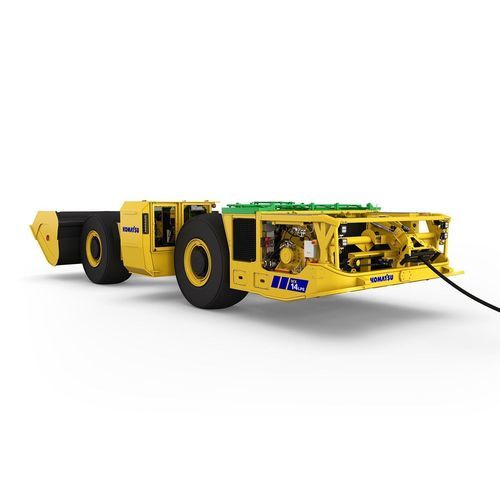

The WX14LPE is a 14-tonne tethered-electric load–haul–dump (LHD) designed for low-profile underground industrial minerals operations. Formerly SLP-14E, it pairs a compact, 2.02 m cabin profile with a direct electric traction system, engineered cable management and components rated for continuous, zero-local-emission operation in demanding drift conditions.

Key benefits

• Power across cycles: 172 kW continuous traction power and 450 kW peak for strong muck pile penetration and acceleration.
• 14 tonne payload: Sized for high productivity in industrial minerals extraction.
• Smart cable handling: Controlled spooling reduces stress, twisting and safety risks to extend cable service life.
• Low‑profile geometry: 2.02 m cabin height for reliable navigation in low drifts and headings.
• Hydraulic efficiency: Load-sensing hydraulics reduce oil temperature and energy loss for consistent performance.
• Durable construction: Welded steel frames and heavy-duty components designed for prolonged operation and lower life-cycle maintenance.
• Operator-focused controls: Three-pedal layout and intuitive controls enabling smooth, stepless speed control for precise driving and loading.
• Zero local emissions: Tethered-electric power reduces heat and ventilation demands underground.
• Ergonomic safety cabin: Hammer glass windows, adjustable pedals and swiveling seat to support operator safety and comfort.

Resources
Spec sheet available for download from manufacturer resources (spec sheet referenced on product page).

Caractéristiques / spécifications techniques

• Model: WX14LPE
• Manufacturer / Brand: Komatsu
• Application: Tethered-electric LHD for low-profile underground industrial minerals mining
• Tramming capacity: 14 000 kg (30,865 lbs)
• Payload: 14 tonne (nominal)
• Standard bucket volume: 9.6 m³ (12.56 yd³) — referenced 9.7 m³ (12.69 yd³)
• Operating weight: 46 916 kg (103,432 lbs)
• Total loaded weight: 60 916 kg (134,297 lbs)
• Front axle weight without load: 21 290 kg (46,936 lbs)
• Rear axle weight without load: 25 626 kg (56,496 lbs)
• Front axle weight with load: 40 796 kg (89,940 lbs)
• Rear axle weight with load: 20 210 kg (44,555 lbs)
• Cable length: 330 m (1,083 ft)
• Cable diameter: 51.8 mm (2.04 in)
• High voltage supply: 1000 V
• Traction drive: Direct electric drive
• Continuous power traction motor: 172 kW (231 HP)
• Peak power traction motor: 450 kW (603 HP)
• Continuous power auxiliary motor: 145 kW (194 HP)
• Peak power auxiliary motor: 200 kW (268 HP)
• Tractive effort: 320 kN (71,939 lbf)
• Hydraulic breakout force (lift/tilt): 200 kN (44,962 lbf)
• Maximum admissible gradient: 28%
• Driving speeds (direct electric drive unloaded): 16, 6.9, 4.9, 4, 3.6, 2.8 km/h
• Driving speeds (direct electric drive loaded): 16, 10, 6.3, 5.4, 4.7, 3.6 km/h
• Transmission / Axles: Electric drive; Axles by Kessler; front and rear D106
• Differentials: Front open, Rear open
• Brakes: Externally cooled, multi-disc, spring-applied hydraulic release (SAHR) brakes
• Rear axle oscillation angle: +/- 8 degrees
• Tires: 26.5R29 (consult local tire supplier for application-specific selection)
• Hydraulic system: Variable displacement piston pump with load-sensing closed center circuit; steering has priority over working hydraulics
• Bucket/boom control: Single-stage, double-acting cylinder with rod guard
• Steering control: Two single-stage, double-acting cylinders
• Bucket dump cylinder: Single-stage, double-acting cylinder with rod guard
• Boom hoist cylinders: Two single-stage, double-acting cylinders
• Hydraulic tank volume: 600 L (159 US gal)
• Bucket motion times: Dump 5.2 s; Raising 6.8 s; Lowering 4.6 s
• Articulation turning time: Right 3 s; Left 3 s
• Instrument panel: Digital 12" (0.3 m) touch display option, illuminated buttons, camera display
• Cabin height: 2.02 m (low-profile design)
• Structural: Front and rear frames welded steel construction, modular design; material S 355J2 / S690
