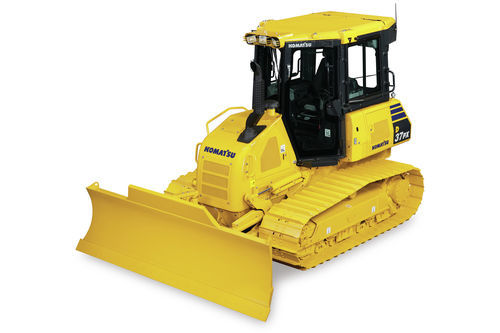

Crawler bulldozer D37PX-24

outdoorfor constructionrough terrain

Overview
The D37PX-24 is a transportable crawler dozer designed for precise grading, high agility and clear blade visibility. Suited for construction site work, high-speed grading and confined-space operations, it combines hydrostatic transmission responsiveness with a cab-forward slant-nose layout for operator control and visibility.

Key specifications (high-level)

• Power: 66 kW (89 HP) @ 2,200 rpm
• Operating weight: 9,300 kg (20,503 lbs)
• Blade capacity: 2.13 m3 (2.79 yd3)
• Shoe width (standard): 600 mm single-grouser shoe
• Maximum travel speed: up to 13.7 kph (8.5 mph) in highest quick-shift

Features and benefits

• Excellent blade visibility — Super-slant nose and cab-forward design provide clear sightlines to cutting edges for accurate grading and safer operation.
• Designed for uptime — Rear-mounted cooler and accessible service points reduce debris exposure and simplify maintenance from ground level.
• Compact agility — Hydrostatic transmission (HST) and variable speed or preset quick-shift settings enable precise maneuvering and fast grading in tight areas.

Standard equipment (selection)

• Accumulator for Electric Proportional Control (EPC)
• Dry double-element air cleaner with caution lamp on monitor
• Air conditioner (A/C)
• 24 V / 85 A alternator; large-capacity batteries 24 V / 92 Ah
• Back-up alarm and worklamps (Front 3, Rear 2)
• Cab accessories: 12 V × 2 power supply, cup holder, rear view mirror, rear view monitor system, large high-resolution LCD
• Crankcase guard, underguard and radiator guard grid
• Decelerator/brake pedal (single pedal)
• Electronically controlled HST with quick-shift and variable speed settings
• Engine KOMATSU SAA4D95LE-7 (gross output 67 kW / 91 HP) EPA Tier 4 Final / EU Stage 4 certified
• Palm Command Control System (PCCS) with electronic travel control and EPC for blade control
• ROPS cab meeting ISO 3471 / SAE J/ISO 3471 and ISO 3449 FOPS standards; air-suspension heated seat with headrest
• Track shoe assembly (PLUS): sealed and lubricated; D37PX-24: 600 mm single grouser shoe
• Self-adjusting roller and triple labyrinth final drive
• Real-time DEF monitoring and reverse travel speed presets

Operational highlights

• Hydrostatic transmission: Dual-path HST provides infinite speed changes with variable capacity travel motors; quick-shift speeds adjustable via monitor.
• Travel speeds: variable mode forward/reverse 0–13.7 kph (0–8.5 mph); quick-shift presets for 1st/2nd/3rd speed ranges.
• Steering: PCCS joystick for directional control; power turn with counter rotation; minimum turning radius approx. 2.3 m (91 in) pivot turn.

Resources

• Product brochure available (PDF)
• Infographic and imagery for product and slant-nose configuration

Technical specifications

• Undercarriage: Rigid track frame; monocoque large-section track roller frame; lubricated track rollers; sealed and lubricated track with grease-adjustable tension; grouser height 47 mm.
• Number of track rollers (each side): 6; number of shoes (each side): 41; number of carrier rollers (each side): 1; ground contact area: 26,760 cm2 (28.8 ft2); ground pressure: 0.30 kg/cm2 (29.9 kPa) / 4.33 psi.
• Engine: Komatsu SAA4D95LE-7, 4-cycle water-cooled direct injection, turbocharged with air-to-air aftercooler; 4 cylinders; displacement 3.26 L; net power 66 kW (89 HP) @ 2,200 rpm; EPA Tier 4 Final / EU Stage 4 certified.
• Lubrication: Full-flow filter; gear pump, force lubrication.
• Operator / weights: Operating weight (with PAT dozer, ROPS cab, operator, standard equipment, fluids, full fuel): 9,300 kg (20,503 lbs); tractor weight: 7,940 kg (17,505 lbs).
• Final drive: In-shoe mounted axial-piston travel motors with integrated two-stage planetary reduction; bolt-on sprocket ring with triple labyrinth seal.
• Hydrostatic transmission: Dual-path HST with infinite speed changes; travel speed presets and variable mode; quick-shift adjustable in monitor.
• Service capacities: Fuel tank 190 L; DEF 10 L; coolant 34 L; engine oil 11 L; final drive 3.5 L; hydraulic tank 64 L.
• Steering system: PCCS joystick control for all directional movements; HST provides smooth, powerful turns; minimum turning radius ~2.3 m (91 in).
