Overview

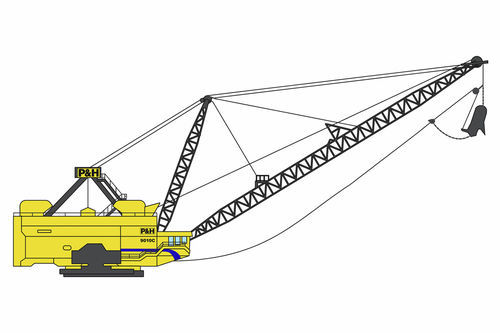

Keep your operation humming. No matter what boom length, bucket capacity or geometry you need, you’ll find a P&H dragline built from the ground up to deliver long-term, consistent, reliable performance.

Key points

• Ultra-strong tub distributes loads evenly for outstanding reliability
• A-frame engineered to effectively manage load forces
• Four-chord boom has the structural integrity to operate in tough conditions
• Electronics platform to help operators perform at peak efficiency

Features and benefits

• Tub engineered to perform: Built for long life and low maintenance, P&H tubs handle multi-directional loads and verti-shield welding joins on all intersection plates with one continuous weld resulting in minimal distortion with widely distributed loading and low residual stresses.
• Intelligent, productivity-focused electronics: Track your machine’s performance to support efficient operation and maintenance activities. The Centurion control system utilizes smart electronics to monitor dragline operation.
• Highly engineered boom and A-frame: Stability, excellent visibility of boom point sheaves and balanced axial working loads with the four-chord boom with flat underside. For maximum-rated suspended load, the A-frame is engineered to keep load forces low.
• Engineered with user input: Designed to improve safety, delivery, maintenance and inspection activities to help meet goals for increased production, reduced downtime and lower cost per unit moved.
• Outstanding service: Collaboration to develop innovative parts, products, consumables and systems designed to lower total cost of ownership while optimizing production.

Media
Includes product imagery and a product video demonstrating P&H dragline capabilities and cost-effective productivity.

Specifications / technical specifications

• Bucket capacity (m3): 42 - 60
• Bucket capacity (yd3): 55 - 80
• Boom length (m): 84 - 107
• Boom length (ft): 275 - 350
• Clearance under shoes (ft): 2 ft. 3 in
• Clearance under shoes (m): 686
• Distance from center pin to boom foot (ft): 36 ft. 11 in
• Distance from center pin to boom foot (m): 11.3
• Height of boom foot (m): 3.37
• Height of boom foot (ft): 13.3
• Normal length of step (m): 2.2
• Normal length of step (ft): 7 ft. 2 in
• Pitch diameter of point sheave (mm): 3048
• Pitch diameter of point sheave (ft): 120
• Diameter of rail circle (ft): 57
• Diameter of rail circle (m): 17.4
• Rail width (in): 14
• Rail width (mm): 356
• Quantity and diameter of rollers (in): 131 x 14
• Quantity and diameter of rollers (mm): 356
• Pitch diameter of swing rack (ft): 52 ft. 3.1875 in
• Pitch diameter of swing rack (m): 15.9
• Maximum working clearance between tub and revolving frame (m): 2
• Maximum working clearance between tub and revolving frame (ft): 6 ft. 8 in
