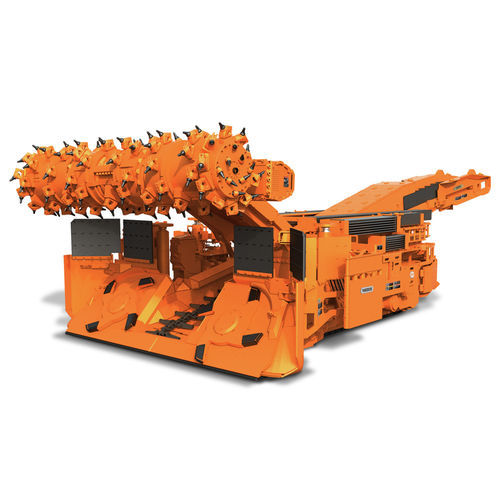

Continuous miner with roof bolter 14ED25

Overview
Designed for enhanced productivity in low- to mid-seam entry development, the 14ED25 entry driver integrates a bolting system to enable simultaneous cutting and bolting in a single pass. This single-pass capability addresses the entry gate bottleneck encountered during early roof support installation when roof conditions are weak.

Key benefits

• Exceptional reliability and high uptime
• Extended time between major rebuilds (typically 3–6 years)
• Eliminates the entry gate bottleneck by enabling simultaneous cutting and bolting

Features and benefits (highlights)

• Dual extendable cutterheads: Hydraulic cutterhead extensions retract for easier withdrawals and flexible corner cutting. Wide head cuts up to 16 ft in a single pass. Cutterhead power: 656 HP / 490 kW.
• Faceboss Control System: Operator assistance tools, automated sequences, advanced diagnostics and machine performance monitoring provide actionable insights to optimize operation.
• Dual roof drills: One semi-automatic Joy AFX210 roof bolter with tilt capability is fixed on each side of the miner for rapid roof control installation.
• Front and rear ATRS cylinders: Four hydraulic cylinders stabilize the roof during mining and bolting; engaged by push-button, cylinders pulse to maintain contact with the roof and help protect the operator.
• Hydraulic optimization package: Minimizes hosing and component count, simplifies hose routing to improve maintenance accessibility and streamline rebuilds.

Additional product details

• Integrated bolting system enables simultaneous cutting and bolting in a single pass.
• Wet or dry drilling capability.
• Resources: Parts and related resources are available for this product.

Technical specifications

• Model / commercial name: 14ED25
• Category: Entry development — Entry drivers
• Number of roof bolters: 2
• Number of rib bolters: 2
• Root drill to pick tip distance: 137 in
• Machine length: 42 ft. 11 in
• Machine weight: 180,000 - 196,000 lbs
• Chassis height: 48 in
• Ground clearance: 11 in
• Chassis width: 120 in
• Ground pressure: 33 - 37 psi
• Traction speed (max): 65 fpm
• Crawler chain width: 22 in
• Roof drills with integral timber cylinder: Two AFX210 drills
• Optional rib drills: 2
• Drilling features: Wet or dry drilling
• Roof drill to face distance: 9 ft. 4 in
• Rib drill to face distance: 13 ft. 7 in
• Rib guards: 6 ft. 0 in or 8.5 in
• TRS reach: 12 ft. 9 in
• Cutter head diameter: 44 in
• Cutter width: 15 ft. 6 in (minimum)
• Maximum cut height: 11 ft. 5 in
• Minimum cut height: 6 ft. 6 in
• Cutter speed: 60 rpm
• Bit tip speed: 690 fpm
• Drum extensions: 9 in
• Sump distance: 52 in
• Cutter motors: 328 HP
• Gathering head motors: 67 HP
• Traction motors: 80 HP
• Pump motors: 160 HP
• Conveyor motor: 54 HP
• Total horsepower: 1165 HP
• Conveyor width: 30 in
• Conveyor sideboard height: 12 in
• Conveyor speed: 402 fpm
• CLA diameter: 51 in
• Machine voltage: 950 V 60 Hz
• Machine cable: 4/0 - 3 conductor
• Hydraulic pump (tandem): 120 gpm
• Hydraulic tank capacity: 300 US gal
