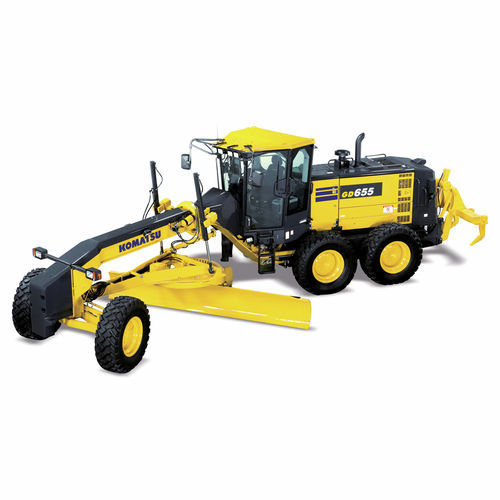

Outdoor motor grader GD655-6

for construction

Overview
The GD655-6 motor grader by Komatsu delivers precise surface grading with operator-focused visibility and dual-mode transmission for adaptable performance.

• Exceptional operator visibility and job-site awareness
• Smooth power delivery with selectable fuel-efficiency modes
• High-flow CLSS hydraulics for responsive implement control
• Improved fuel efficiency up to 15% in E-Mode versus previous generation

Features and benefits

• Dual-mode powershift transmission with torque converter — Selectable P-Mode/E-Mode and anti-stall functionality for precise finish grading and heavy-push performance.
• Fuel-efficiency power modes — Eco mode for low-consumption fine work and power mode for high-demand tasks.
• Standard blade lift accumulators — Protects moldboard, drawbar and circle by absorbing impacts.
• Operator comfort — Air-suspension seat and low-profile hexagonal cab for reduced fatigue and enhanced visibility.
• CLSS closed-center load-sensing hydraulics — Multi-circuit capability provides constant implement speed and simultaneous operations independent of engine speed.
• Hydraulic reversing cooling fan — Variable operation according to engine load and temperature for efficiency.
• Telematics (Komtrax) — Remote service alerts, operating history and fuel usage data for fleet management.

Resources

• Competitive comparison
• Download product brochure (PDF)
• Financing information
• Order parts

Technical specifications

• Model: GD655-6
• Brand: Komatsu
• Net power: 218 HP (163 kW) @ 2,100 rpm
• Engine: SAA6D107E-3, 6 cyl., turbocharged, aftercooled, cooled EGR
• Operating weight: 16,940 kg (typical configuration)
• Moldboard: 4.0 m × 660 mm × 22 mm; cutting edge 152 × 16 mm
• Blade range: lift above ground 480 mm; max cutting depth 615 mm; side shift ±820 mm
• Transmission: Dual-mode (8F-4R) powershift with torque converter; selectable P-Mode/E-Mode
• Hydraulics: CLSS closed-center load-sensing, hydraulic output 200 L/min
• Fuel tank: 390 L
• Cooling: hydraulic-driven reversing fan
• Operator environment: low-profile ROPS/FOPS Level II cab, air suspension seat, multi-monitor and rearview camera
• Standard highlights: Komtrax, KDPF after-treatment, SCR, blade accumulators, provision for grade control
