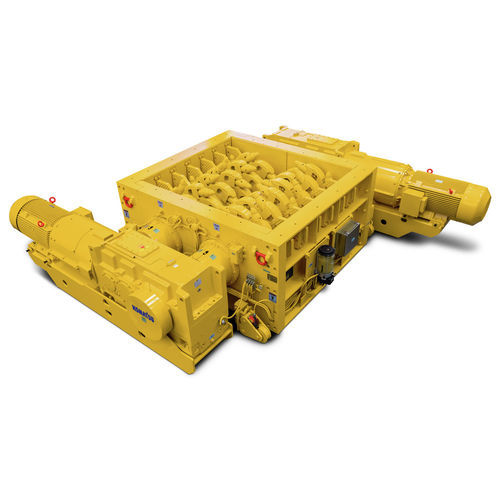

Toothed roller crusher HRX 1000

stationarycompactwet type

Product overview
High-capacity compact roll sizer designed for crushing hard rock, ore and overburden in confined or mobile installations. The HRX 1000 handles wet, sticky and abrasive materials while maintaining throughput and controllable product sizes.

Features and benefits

• High capacity - High-capacity sizers reduce the number of crushing or dump stations required and can accept very large lump sizes to increase crushing ratios.
• Reduce costs - Compact design allows installation where other crushers would not fit, lowering civil and installation costs; suitable for mobile and underground applications.
• Ability to crush wet, sticky materials - Integrated frame cleaners scrape off material accumulation; effective with clay, marl and tunnel spoil.
• Efficient and cost-effective - Energy-efficient helical gear reducers, robust power transmission, automatic lubrication and extended-life one- and two-piece picks reduce operating costs; smart machine monitoring supports predictive maintenance.
• Minimizes water and dust ingression - Outboard bearing arrangement with custom sealing reduces water and dust ingress when using water spray for dust suppression or washing.
• Variety of pick designs - Multiple pick options developed for hard, abrasive and sticky applications based on experience with feeder breakers, continuous miners and shearers.
• Replaceable picks - Sizer shafts use replaceable picks for easy renewal versus disposable competitive offerings.
• Control product size - Adjustable, removable breaker bars and pick selection allow control of product size to minimize transfer issues at chutes and conveyors.
• Instrumentation to increase reliability - Bearing temperature and vibration monitoring and locked-rotor detection alarms help protect against tramp metal and reduce downtime.

Resources

• Sizers brochure (PDF)
• Sizer HRX1000 sell sheet (PDF)
• Press release: Crushing and sizing

Technical data / specifications

• Capacity (MTPH): Up to 3 000
• Capacity (TPH): Up to 3,307
• Standard output product sizes (mm): 200 or 250
• Standard output product sizes (in): 8 or 10
• Application: Hard rock, ore and overburden
• Mass (tonnes): 43 - 48
• Mass (tons): 47.4 - 52.9
• Roll spacing (mm): 1 000
• Roll spacing (in): 39.4
• Feed size (mm): Less than 1 000
• Feed size (in): Less than 39.4
• Roll length range (mm): 2 000 - 3 000
• Roll length range (in): 78.7 - 118
