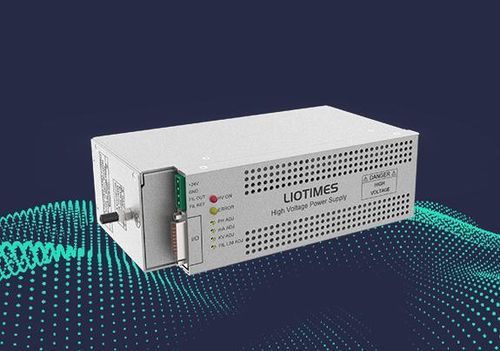

Benchtop power supply LPS-70P70B3

DCsingle-outputadjustable

Output specifications
Output range 0–70 kV, up to 1.0 mA, maximum 70 W; input 24 Vdc ±10%, max 8.0 A.

Overview
The LPS-70P70B3 is a compact, programmable high-voltage DC power supply designed for demanding industrial, medical and research applications. It provides adjustable high-voltage output with low ripple and high thermal stability, and supports both local and remote control for integration into automated test and instrumentation systems.

Applications

• X-ray generation and imaging systems
• Electrostatic processes and testing
• Laboratory research and particle instrumentation
• Industrial high-voltage testing and quality control

Technical specifications

• Input Voltage: 24 Vdc ± 10%
• Input Current: Max 8.0 A
• Output Voltage Range: 0–70 kV
• Output Current: Max 1.0 mA
• Output Power: Max 70 W
• Stability: after 0.5 hr startup, < 0.01%/hr; < 0.02%/8 hrs
• Temperature Coefficient: ≤ 25 ppm/°C
• Ripple Voltage: ≤ 0.1% of max output voltage (P‑P)
• Voltage Load Regulation: 0.01% (no load to rated load)
• Voltage Input Regulation: ±0.01% (input ±10%)
• Current Load Regulation: 0.01% (no load to rated load)
• Current Input Regulation: ±0.01% (input ±10%)
• Dimensions: 127 × 73 × 269 mm
• Weight: 3.5 kg

Safety & interfaces

• Analog local potentiometer and remote 0–10 V DC control
• Communication: RS-232 and RS-485 for system integration
• Protections: interlock, overload and overcurrent safeguards
• Customization options available to match specific application requirements
