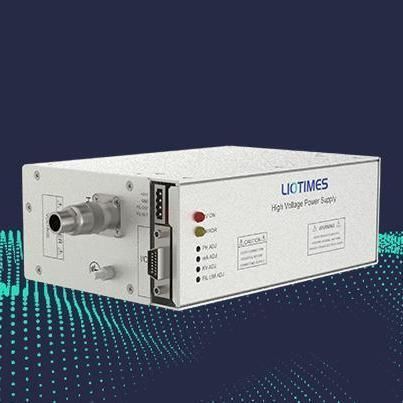

Tabletop power supply LPX-65P65B3

DCsingle-outputadjustable

Brief introduction
The LPX-65P65B3 is a compact precision high-voltage power supply providing an adjustable output from 0 to 65 kV and up to 1.0 mA (65 W). It delivers low ripple (≤ 0.1% P-P), exceptional short- and long-term stability and a temperature coefficient ≤ 25 ppm/°C. Dual analog and digital control is available with a local potentiometer and remote 0–10 Vdc input. Communications interfaces (RS-232 / RS-485) and built-in protections (interlock, overload) facilitate system integration in industrial and laboratory setups.

Key features

• Adjustable high-voltage output: 0–65 kV
• Maximum output current: 1.0 mA
• Maximum output power: 65 W
• Low ripple: ≤ 0.1% of maximum output voltage (P-P)
• High stability: < 0.01%/hr after 0.5 hr warm-up; < 0.02%/8 hrs
• Dual control modes: analog (local potentiometer) and digital (remote 0–10 Vdc)
• Communications: RS-232 and RS-485
• Temperature coefficient: ≤ 25 ppm/°C
• Protections: interlock, overload protection

Applications

• X-ray imaging systems
• Electron microscopy
• Materials analysis instruments
• Medical diagnostic equipment
• Industrial non-destructive testing (NDT) systems
• Advanced physics research setups

Technical specifications

• Model: LPX-65P65B3
• Input voltage: 24 Vdc ±10%
• Input current: Max 8.0 A
• Output voltage range: 0–65 kV
• Output current: Max 1.0 mA
• Output power: Max 65 W
• Stability: < 0.01%/hr after 0.5 hr; < 0.02%/8 hrs
• Temperature coefficient: ≤ 25 ppm/°C
• Ripple voltage: 0.1% of maximum output voltage (P-P)
• Load regulation (voltage): 0.01% (no load to rated load)
• Input regulation (voltage): ±0.01% (±10% input variation)
• Load regulation (current): 0.01% (no load to rated load)
• Input regulation (current): ±0.01% (±10% input variation)
• Dimensions: 75 × 139 × 218 mm
• Weight: 3.5 kg
