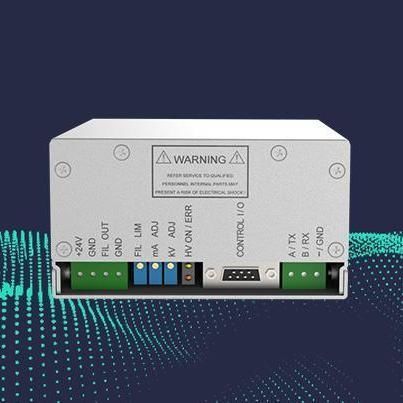

Tabletop power supply LPX-25P25B3

DC/DCsingle-outputfor industrial applications

Brief introduction
The LPX-25P25B3 provides precision high-voltage DC output up to 25 kV with a maximum output current of 1.0 mA and rated power of 25 W. It delivers excellent long-term stability and low ripple. Dual analog/digital control supports local potentiometer adjustment plus remote 0–10 V DC control. Communication interfaces include CAN, RS-232 and RS-485. The compact unit (65 × 115 × 165 mm, 1.6 kg) integrates interlock protection and natural cooling for industrial applications.

Output specs
25 kV, 25 W, max 1.0 mA

Specifications
Input voltage: 24 Vdc ±10%
Input current: max 3.0 A
Output voltage range: 0–25 kV
Output current: max 1.0 mA
Output power: max 25 W
Stability: after 0.5 h <0.01%/h, <0.02%/8 h
Temperature coefficient: ≤25 ppm/°C
Ripple voltage: 0.1% of maximum output voltage (P-P)
Voltage regulation (load): 0.01% (no load to rated load)
Voltage regulation (input): ±0.01% (input variation ±10%)
Current regulation (load): 0.01% (no load to rated load)
Current regulation (input): ±0.01% (input variation ±10%)
Dimensions: 65 × 115 × 165 mm
Weight: 1.6 kg

Features / Technical specifications

• Model: LPX-25P25B3
• Output: up to 25 kV, max 1.0 mA
• Rated output power: 25 W
• Input voltage: 24 Vdc ±10%
• Max input current: 3.0 A
• Stability: <0.01%/h after 0.5 h, <0.02%/8 h
• Ripple: 0.1% of maximum output voltage (P-P)
• Temperature coefficient: ≤25 ppm/°C
• Control: dual analog/digital with local potentiometer and remote 0–10 V DC control
• Communications: CAN, RS-232, RS-485
• Protection & cooling: interlock protection, natural (passive) cooling
• Dimensions: 65 × 115 × 165 mm
• Weight: 1.6 kg
