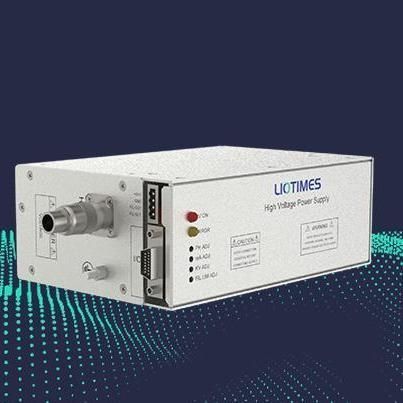

Digital power module LPM-70P70B3

analogDC

Brief Introduction
The LPM-70P70B3 is a high-voltage power module providing adjustable output up to 70 kV and up to 1.0 mA with low ripple (≤0.1% P-P). It features dual analog/digital control with a local potentiometer and remote 0–10 V DC input, supports RS-232/RS-485 communication for system integration, and includes interlock protection and forced-air cooling. The compact industrial unit measures 75 × 139 × 218 mm and weighs 3.5 kg.

Key Features

• Adjustable output up to 70 kV and maximum 1.0 mA output current
• Maximum output power 70 W
• Dual analog/digital control: local potentiometer and remote 0–10 V DC input
• RS-232/RS-485 communication interfaces for automation and monitoring
• Protection functions: interlock and forced-air cooling
• Compact industrial construction (75 × 139 × 218 mm, 3.5 kg)

Applications

• Industrial X-ray inspection systems
• Medical imaging equipment (integration with imaging subsystems)
• High-voltage testing, quality control and automated production line integration

Technical Specifications

• Input Voltage: 24 V DC ±10%
• Input Current: Max 8.0 A
• Output Voltage Range: 0–70 kV
• Output Current: Max 1.0 mA
• Output Power: Max 70 W
• Stability: after 0.5 hr warm-up less than 0.01%/hr; less than 0.02% over 8 hrs
• Temperature Coefficient: ≤25 ppm/°C
• Ripple Voltage: ≤0.1% of maximum output voltage (P-P)
• Voltage Load Regulation: 0.01% (no load to rated load)
• Voltage Input Regulation: ±0.01% (input variation ±10%)
• Current Load Regulation: 0.01% (no load to rated load)
• Current Input Regulation: ±0.01% (input variation ±10%)
• Dimensions: 75 × 139 × 218 mm
• Weight: 3.5 kg
