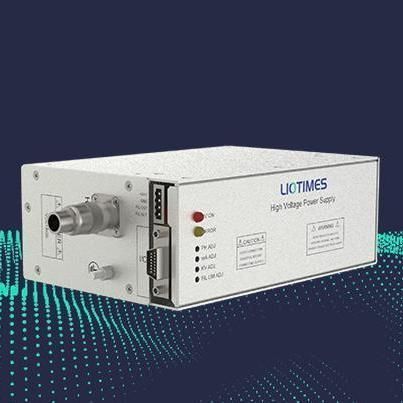

Digital power module LPM-60P60B1

analogDC

Product overview
The LPM-60P60B1 is a precision high-voltage power module providing an adjustable output from 0 to 60 kV and up to 1.0 mA (60 W). It features low ripple (≤0.1% P‑P), excellent short‑ and long‑term stability, dual analog/digital control and both local and remote adjustment options. Communication interfaces (RS-232/RS-485) enable easy integration into industrial control systems. The compact housing (75 × 139 × 218 mm, 3.5 kg) and built‑in protections support reliable continuous operation.

Key features

• Output range: 0–60 kV, max current 1.0 mA, max power 60 W
• High stability: <0.01%/hr after 0.5 hr warm-up; <0.02% over 8 hrs
• Low ripple: 0.1% of maximum output voltage (P‑P)
• Dual control: analog potentiometer and remote 0–10 Vdc control
• Communication: RS-232 and RS-485 for monitoring and control
• Protections: interlock input and forced‑air cooling
• Compact size: 75 × 139 × 218 mm; weight: 3.5 kg

Applications

• Industrial non‑destructive testing (NDT) systems
• Medical diagnostic and research equipment
• High‑voltage laboratory applications and test benches
• Integration into automated production lines and quality control systems

Technical specifications
Model: LPM-60P60B1
Input voltage: 24 Vdc ±10%
Maximum input current: 8.0 A
Output voltage range: 0–60 kV
Maximum output current: 1.0 mA
Maximum output power: 60 W
Stability: after 0.5 hr warm-up <0.01%/hr; <0.02% over 8 hrs
Temperature coefficient: ≤25 ppm/°C
Ripple voltage: 0.1% of maximum output voltage (P‑P)
Voltage regulation (load): 0.01% (no load to rated load)
Voltage regulation (input): ±0.01% for ±10% input variation
Current regulation (load): 0.01% (no load to rated load)
Current regulation (input): ±0.01% for ±10% input variation
Control: dual analog/digital; local potentiometer and remote 0–10 Vdc control
Communication: RS-232, RS-485
Protections: interlock, forced‑air cooling
Dimensions: 75 × 139 × 218 mm
Weight: 3.5 kg
