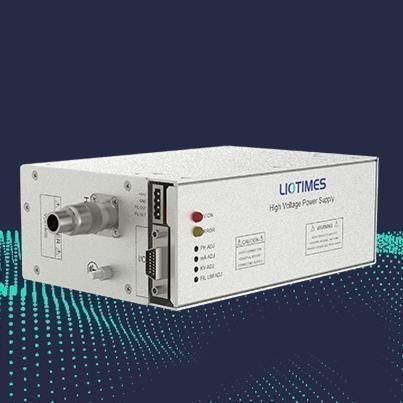

Digital power module LPM-50P50B1

analogDC

Brief introduction
The LPM-50P50B1 is a compact high-voltage power module providing adjustable output up to 50 kV and 1.0 mA (max 50 W). It features ultra-low ripple (≤0.1% P-P) and high long-term stability, with dual analog/digital control: local potentiometer adjustment and remote 0-10 Vdc control. RS-232 and RS-485 communication are supported for system integration. The unit includes interlock protection and forced-air cooling for safe operation. Weight: 3.5 kg; Dimensions: 75 × 139 × 218 mm.

Applications

• Industrial X-ray inspection systems
• Medical diagnostic equipment
• High-voltage testing applications
• Integration into automated production lines and quality control systems requiring stable high-voltage supply

Specifications (from product table)
Model: LPM-50P50B1
Input Voltage: 24Vdc ± 10%
Input Current: Max 8.0A
Output Voltage Range: 0~50kV
Output Current: Max 1.0mA
Output Power: Max 50W
Stability: 0.5 hr after starting up, <0.01%/hr; <0.02%/8 hrs
Temperature Coefficient: ≤25 ppm/°C
Ripple Voltage: ≤0.1% of maximum output voltage (P-P)
Voltage Load Regulation: 0.01% (no load to rated load)
Voltage Input Regulation: ±0.01% (input variation ±10%)
Current Load Regulation: 0.01% (no load to rated load)
Current Input Regulation: ±0.01% (input variation ±10%)
Dimensions: 75 × 139 × 218 mm
Weight: 3.5 kg

Dimensions
Product page includes a dimension drawing for physical mounting and integration reference.

Technical features

• Model: LPM-50P50B1
• Output capability: up to 50 kV, 1.0 mA (50 W)
• Ultra-low ripple: ≤0.1% (P-P)
• Control: Dual analog/digital; local potentiometer and remote 0-10 Vdc input
• Communications: RS-232 / RS-485 supported
• Cooling: Forced-air cooling
• Protection: Interlock protection and comprehensive safety features
• Input: 24Vdc ±10%, Max input current 8.0A
• Stability: <0.01%/hr after 0.5 hr, <0.02%/8 hrs
• Temperature coefficient: ≤25 ppm/°C
• Physical size: 75 × 139 × 218 mm; Weight: 3.5 kg
