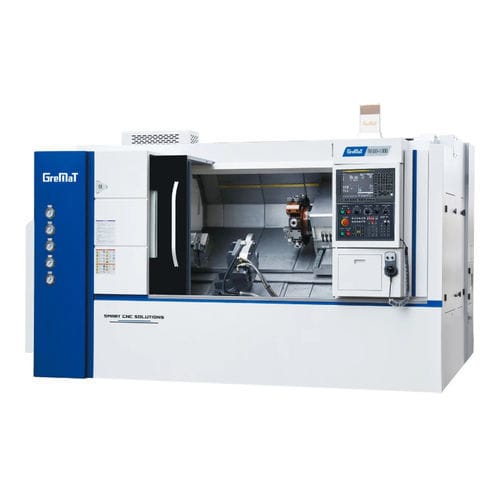

CNC turning center TN500-10002-axisA2-612 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 2-axis
- Spindle mount
- A2-6
- Number of tool stations
- 12 tools
- Diameter
380 mm, 600 mm
(14.96 in, 23.62 in)- Spindle speed
4,000 rpm
(25,132.741 rad.min-1)- Maximum part length
1,000 mm
(39 in)- Axe X
230 mm
(9 in)- Axe Z
1,000 mm
(39 in)- Rapids on X
20 m/min
- Rapids on Z
20 m/min
- Nominal power
22 kW, 30 kW
(29.9 hp, 40.8 hp)- Overall lenght
3,500 mm
(138 in)- Overall width
1,950 mm
(77 in)- Overall height
2,200 mm
(87 in)- Weight
6,200 kg
(13,669 lb)
Description
TN and TS are turning centers able to flexibly handle various workpieces. The models feature Belt-Driven or Direct Driven Spindle (Built-in Motor) that achieves high speed with great rigidity, and outstanding C axis accuracy. 12-station Power turret enables operators to perform machining of workpieces from simple to complex shaped components with one set up operation.
Capacity
Chuck size - inch - 8 , * 10
Spindle
Spindle bore - mm - Φ66
Max. dia. of through-hole - mm - Φ52
Turret
Tool shank size - BMT55
Max. speed of driving tool - rpm - 4000, *5000
Tailstock
Type of tailstock - SST, *SPT
Taper of tailstock quill - MT5 , * MT3
Travel of tailstock - mm - 100-1000
Others
Slant bed degree - 35 °
Guideway type - LM
Power capacity - kVA - 28
