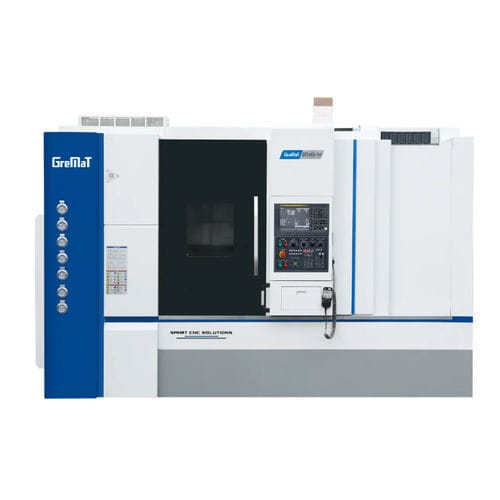

CNC turning center DT500ES-900

3-axisslant bed2-spindle

Standard with cylindrical roller heavy duty linear motion guideways, pre-loaded high class ballscrew, NSK Bearings, DDS spindle, centralized oil lubrication, DT500E-S/TN500-S/STL8-S are modular designed and manufactured using only the best parts and materials to handle maximum capacities with ease. Double spindles offer capacity to machine from raw material to finished parts in one set-up. Together with automatic loading systemgantry arm or industry robot, this series machines are able to realize single machine integrated automation with great reliability and super efficiency. Spindle Hydraulic chuck - Inch - 8 Dia. of spindle bore - mm - Φ66 Max. dia. of through-hole - mm - Φ52 Sub Spindle - Hydraulic chuck - 6 Dia. of spindle bore - mm - Φ55 Max. dia. of through-hole - mm - Φ46 Axis Y axis travel - mm - 140 (±70) Y axis rapid traverse - m/min - 12 ,*7 Turret Type of turret - BMT55 OD tool shank size - mm - 20 ×20 , *25 ×25 Boring tool shank size - mm - Φ40 Max. speed of live tooling - rpm - 4000 ,*6000 Boring depth of sub spindle - mm - 120 , *90 Structure Slant bed degree - degree - 35 ° Guideway type - mm - LM
