CNC turning center TS600
2-axisA2-8VDI 40

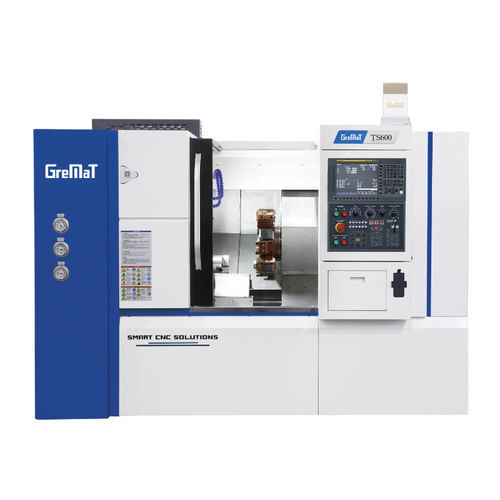

CNC turning center - TS600 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-8 / VDI 40
CNC turning center - TS600 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-8 / VDI 40
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Spindle mount
A2-8, VDI 40
Number of tool stations
12 tools
Drive system
belt drive, direct-drive
Applications
for complex parts
Performance
high-speed
Other characteristics
compact
Diameter

400 mm, 600 mm
(15.75 in, 23.62 in)

Spindle speed

3,000 rpm
(18,849.556 rad.min-1)

Maximum part length

400 mm
(16 in)

Rapids on X

20 m/min

Rapids on Z

20 m/min

Nominal power

37 kW, 45 kW
(50.3 hp, 61.2 hp)

Overall lenght

2,700 mm
(106 in)

Overall width

2,000 mm
(79 in)

Overall height

2,120 mm
(83 in)

Weight

4,900 kg
(10,803 lb)

Description

TN and TS are turning centers able to flexibly handle various workpieces. The models feature Belt-Driven or Direct Driven Spindle (Built-in Motor) that achieves high speed with great rigidity, and outstanding C axis accuracy. 12-station Power turret enables operators to perform machining of workpieces from simple to complex shaped components with one set up operation. TS are models are without a tailstock for a more compact and economic design to satisfy short or disc type workpiece. Capacity Chuck size - inch - 10 Spindle Spindle bore - mm - Φ86 Max. dia. of through-hole - mm - Φ75 Turret Max. speed of driving tool - rpm - 4000 , *5000 Others Slant bed degree - 35 ° Guideway type - LM Power capacity - kVA - 40
