CNC turning center TN800
A2-1112 toolsbelt drive

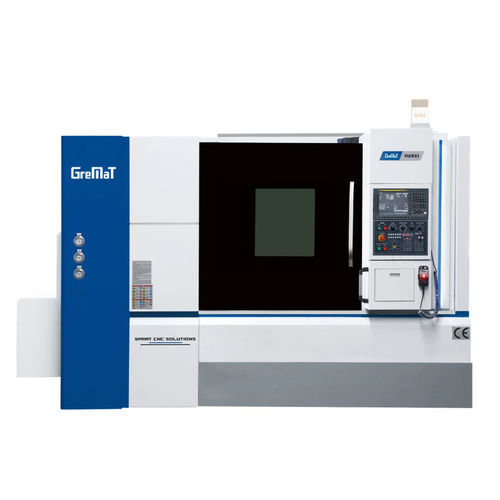

CNC turning center - TN800 - Nanjing Genvan Intelligent Equipment Co. Ltd. - A2-11 / 12 tools / belt drive
CNC turning center - TN800 - Nanjing Genvan Intelligent Equipment Co. Ltd. - A2-11 / 12 tools / belt drive
Add to favorites
Compare this product

Characteristics

Control type
CNC
Spindle mount
A2-11
Number of tool stations
12 tools
Drive system
belt drive, direct-drive
Applications
for complex parts
Performance
high-speed
Diameter

600 mm, 800 mm
(23.62 in, 31.5 in)

Spindle speed

1,000 rpm, 1,500 rpm
(6,283.185 rad.min-1, 9,424.778 rad.min-1)

Maximum part length

650 mm, 900 mm, 1,400 mm, 1,900 mm
(26 in, 35 in, 55 in, 75 in)

Axe X

380 mm
(15 in)

Axe Z

650 mm, 900 mm, 1,400 mm, 1,900 mm
(26 in, 35 in, 55 in, 75 in)

Rapids on X

15 m/min

Rapids on Z

20 m/min

Nominal power

15 kW, 18.5 kW, 22 kW
(20.4 hp, 25.2 hp, 29.9 hp)

Overall lenght

3,900 mm
(154 in)

Overall width

2,200 mm
(87 in)

Overall height

2,550 mm
(100 in)

Weight

9,300 kg, 10,200 kg, 11,200 kg, 12,200 kg
(20,503 lb, 22,487 lb, 24,692 lb, 26,896 lb)

Description

TN and TS are turning centers able to flexibly handle various workpieces. The models feature Belt-Driven or Direct Driven Spindle (Built-in Motor) that achieves high speed with great rigidity, and outstanding C axis accuracy. 12-station Power turret enables operators to perform machining of workpieces from simple to complex shaped components with one set up operation. Capacity Chuck size - inch - 18" , * 15" Spindle Spindle bore - mm - Φ110, *Φ120 Max. dia. of through-hole - mm - Φ95, *Φ110 Turret Tool shank size - BMT65 Max. speed of driving tool - rpm - 4000, *5000 Tailstock Type of tailstock - SST-LM, *SPT Taper of tailstock quill - MT5 Travel of tailstock - mm - 100-650,*900,*1400 , *1900 Others Slant bed degree - 45 ° Guideway type - LM Power capacity - kVA - 48
