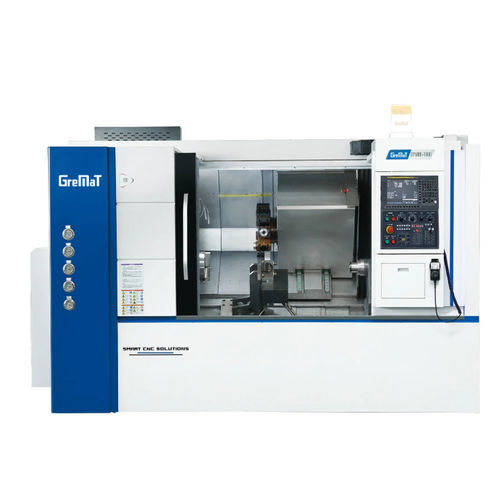

CNC turning center DT500E-1000

4-axisA2-612 tools

Z-MaT DT series turning centers provide DDS spindle or Belt spindle units, Driven tool turret and Y axis features. This Series extremely extends machining capability for combining turning and off center milling. With Y axis, customers can replace more than 90% secondary machining process by milling machine for turned parts. It will save the labor time, increase accuracy and efficiency. Thanks for mass production, Z-MaT work hard to make every customer own an excellent turning center at an affordable price. You don’t need 1 CNC lathe and 1 milling/drilling/tapping machine any more. In most instances, one unit of DT series turning center solves all your problems in one setup. Spindle Hydraulic chuck - Inch - 8 Dia. of spindle bore - mm - Φ66 Max. dia. of through-hole - mm - Φ52 Structure Slant bed degree - degree - 35° Guideway type - mm - LM Axis Y axis travel - mm - 140 (±70) Turret Type of turret - BMT55, *BMT65 OD toolshank size - mm - 20×20 *25×25 Boring toolshank size - mm - Ф32 , * Ф40 Max. speed of live tooling - rpm - 4000, *6000 Tailstock Type of tailstock - SPT, *SST Taper of tailstock quill - MT3(spindle unit type) Travel of tailstock - mm - 100-1000
