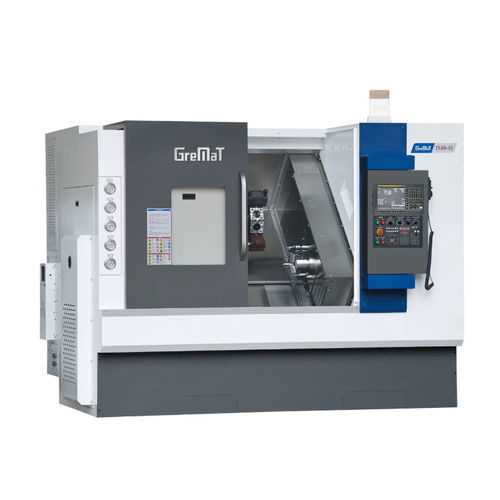

CNC turning center TN400-SX

inclined bed2-spindleA2-5

The TN400-SX use its sub-spindle to follow the movements of the main spindle, in order to perform on both sides of a workpiece simultaneously, while also using the program coupling between X1/Z1 and X2/Z2 Coordinate system to synchronize their movements. 1. One-piece moulding 45° inclined bed, precision large specification linear roller guide rail, large span layout, stable structure and strong rigidity, good accuracy retention. 2. Precision high-speed electric main and sub spindle A2-5 with NSK bearings can get the optimal combination of high precision, high load capacity, high speed and long-lasting durability. 3. 12 station power turret-BMT55 turret is used on left drag plates of the machine. The turret has short tool change time and high positioning accuracy, which is conducive to the improvement of machining accuracy. Spindle Taper hole of main spindle and sub-spindle - MT6 Spindle bore of main spindle and sub-spindle - mm - 55/55mm Bar capacity of main spindle and sub-spindle - mm - 46/46 Bearing of main spindle and sub spindle - 3-7018/ NN3015 Axis Maximum cutting feed speed - m/min - 8 Turret Tool shank size - BMT55 Max. speed of driving tool - rpm - 4000 , *6000 Others Rated power - kW - 11 / 11
