CNC turning center TS500
2-axisA2-6VDI 30

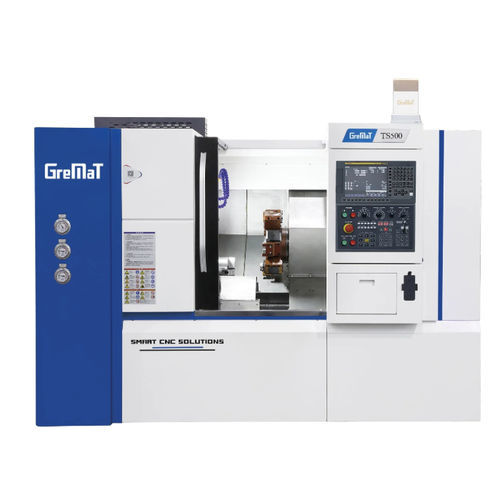

CNC turning center - TS500 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-6 / VDI 30
CNC turning center - TS500 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / A2-6 / VDI 30
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Spindle mount
A2-6, VDI 30
Number of tool stations
12 tools
Drive system
belt drive
Applications
for complex parts
Performance
high-speed
Other characteristics
compact
Diameter

320 mm, 550 mm
(12.6 in, 21.65 in)

Spindle speed

4,000 rpm
(25,132.741 rad.min-1)

Maximum part length

320 mm
(13 in)

Axe X

250 mm
(10 in)

Axe Z

320 mm
(13 in)

Rapids on X

20 m/min

Rapids on Z

20 m/min

Nominal power

22 kW, 30 kW
(29.9 hp, 40.8 hp)

Overall lenght

2,600 mm
(102 in)

Overall width

1,750 mm
(69 in)

Overall height

2,050 mm
(81 in)

Weight

4,100 kg
(9,039 lb)

Description

TN and TS are turning centers able to flexibly handle various workpieces. The models feature Belt-Driven or Direct Driven Spindle (Built-in Motor) that achieves high speed with great rigidity, and outstanding C axis accuracy. 12-station Power turret enables operators to perform machining of workpieces from simple to complex shaped components with one set up operation. TS are models are without a tailstock for a more compact and economic design to satisfy short or disc type workpiece. Capacity Chuck size - inch - 8 Spindle Spindle bore - mm - Φ66 Max. dia. of through-hole - mm - Φ52 Turret Max. speed of driving tool - rpm - 4000 , *6000 Others Slant bed degree - 60 ° Guideway type - LM Power capacity - kVA - 25
