CNC turning center TN700
2-axisslant bedA2-8

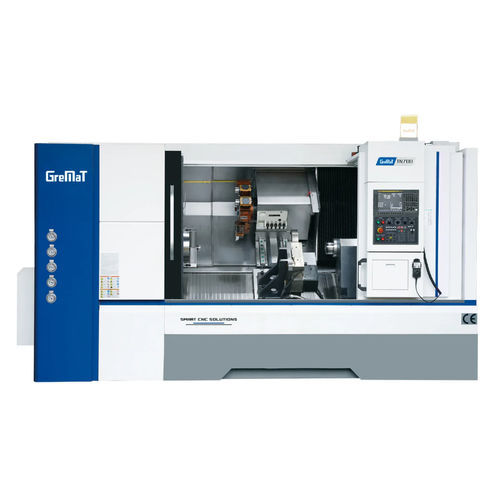

CNC turning center - TN700 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / slant bed / A2-8
CNC turning center - TN700 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / slant bed / A2-8
CNC turning center - TN700 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / slant bed / A2-8 - image - 2
CNC turning center - TN700 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / slant bed / A2-8 - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Structure
slant bed
Spindle mount
A2-8
Number of tool stations
12 tools
Drive system
belt drive, direct-drive
Applications
for complex parts
Performance
high-speed
Diameter

360 mm, 620 mm
(14.17 in, 24.41 in)

Spindle speed

2,000 rpm
(12,566.371 rad.min-1)

Maximum part length

1,250 mm, 1,700 mm
(49 in, 67 in)

Axe X

300 mm
(12 in)

Axe Z

1,250 mm, 1,700 mm
(49 in, 67 in)

Rapids on X

15 m/min

Rapids on Z

20 m/min

Nominal power

18.5 kW, 22 kW
(25.2 hp, 29.9 hp)

Overall lenght

4,550 mm
(179 in)

Overall width

2,270 mm
(89 in)

Overall height

2,550 mm
(100 in)

Weight

10,700 kg, 11,700 kg
(23,589 lb, 25,794 lb)

Description

TN and TS are turning centers able to flexibly handle various workpieces. The models feature Belt-Driven or Direct Driven Spindle (Built-in Motor) that achieves high speed with great rigidity, and outstanding C axis accuracy. 12-station Power turret enables operators to perform machining of workpieces from simple to complex shaped components with one set up operation. Capacity Chuck size - inch - 15 Spindle Spindle bore - mm - Φ105 Max. dia. of through-hole - mm - Φ91 Turret Tool shank size - BMT65 Max. speed of driving tool - rpm - 4000 , *5000 Tailstock Type of tailstock - SST-LM , *SPT Taper of tailstock quill - MT5 Travel of tailstock - mm - 100-1250 , * 1700 Others Slant bed degree - 45 ° Guideway type - LM Power capacity - kVA - 45
