CNC turning center DT350E
3-axisA2-512 tools

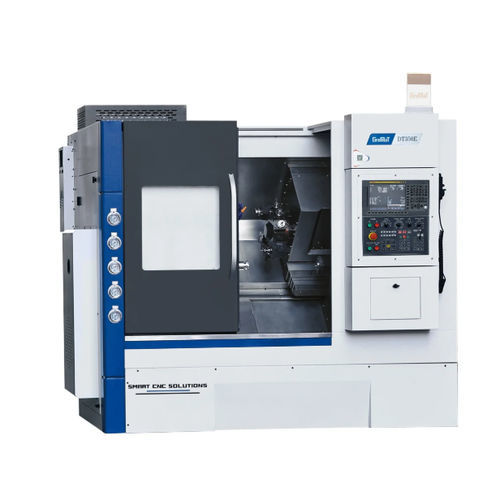

CNC turning center - DT350E - Nanjing Genvan Intelligent Equipment Co. Ltd. - 3-axis / A2-5 / 12 tools
CNC turning center - DT350E - Nanjing Genvan Intelligent Equipment Co. Ltd. - 3-axis / A2-5 / 12 tools
CNC turning center - DT350E - Nanjing Genvan Intelligent Equipment Co. Ltd. - 3-axis / A2-5 / 12 tools - image - 2
CNC turning center - DT350E - Nanjing Genvan Intelligent Equipment Co. Ltd. - 3-axis / A2-5 / 12 tools - image - 3
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
3-axis
Spindle mount
A2-5
Number of tool stations
12 tools
Applications
for mass production
Associated function
milling, drilling, tapping
Diameter

300 mm, 500 mm
(11.81 in, 19.69 in)

Spindle speed

5,000 rpm
(31,415.927 rad.min-1)

Maximum part length

320 mm
(13 in)

Maximum cutting diameter

160 mm
(6 in)

Axe X

150 mm
(6 in)

Axe Z

320 mm
(13 in)

Rapids on X

20 m/min

Rapids on Z

20 m/min

Nominal power

11 kW, 15 kW
(15 hp, 20.4 hp)

Overall lenght

2,400 mm
(94 in)

Overall width

1,665 mm
(66 in)

Overall height

2,220 mm
(87 in)

Weight

2,700 kg
(5,952 lb)

Description

Z-MaT DT series turning centers provide DDS spindle or Belt spindle units, Driven tool turret and Y axis features. This Series extremely extends machining capability for combining turning and off center milling. With Y axis, customers can replace more than 90% secondary machining process by milling machine for turned parts. It will save the labor time, increase accuracy and efficiency. Thanks for mass production, Z-MaT work hard to make every customer own an excellent turning center at an affordable price. You don’t need 1 CNC lathe and 1 milling/drilling/tapping machine any more. In most instances, one unit of DT series turning center solves all your problems in one setup. Spindle Hydraulic chuck - Inch - 6 Dia. of spindle bore - mm - Φ55 Max. dia. of through-hole - mm - Φ46 Structure Slant bed degree - degree - 45 ° Guideway type - mm - LM Y axis travel - mm - 70 (±35) Turret OD toolshank size - mm - 16×16 Boring toolshank size - mm - Ф25 Max. speed of live tooling - rpm - 4000 Tailstock Type of tailstock - Hydraulic, *SST Taper of tailstock quill - MT4 Travel of tailstock - mm - 320
