CNC turning center TN600
2-axisslant bedA2-8

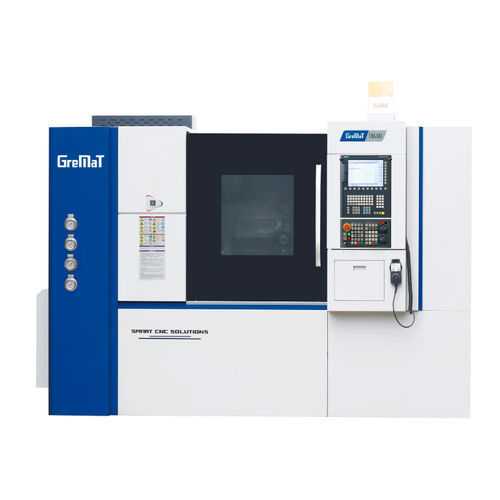

CNC turning center - TN600 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / slant bed / A2-8
CNC turning center - TN600 - Nanjing Genvan Intelligent Equipment Co. Ltd. - 2-axis / slant bed / A2-8
Add to favorites
Compare this product

Characteristics

Control type
CNC
Number of axes
2-axis
Structure
slant bed
Spindle mount
A2-8
Number of tool stations
12 tools
Drive system
belt drive
Applications
for complex parts
Diameter

360 mm, 620 mm
(14.17 in, 24.41 in)

Maximum part length

700 mm, 900 mm, 1,700 mm
(28 in, 35 in, 67 in)

Axe X

280 mm
(11 in)

Axe Z

700 mm, 900 mm, 1,800 mm
(28 in, 35 in, 71 in)

Rapids on X

20 m/min

Rapids on Z

20 m/min

Nominal power

37 kW, 45 kW
(50.3 hp, 61.2 hp)

Overall lenght

3,200 mm
(126 in)

Overall width

1,920 mm
(76 in)

Overall height

2,130 mm
(84 in)

Weight

6,000 kg, 7,000 kg, 8,100 kg
(13,228 lb, 15,432 lb, 17,857 lb)

Description

TN and TS are turning centers able to flexibly handle various workpieces. The models feature Belt-Driven or Direct Driven Spindle (Built-in Motor) that achieves high speed with great rigidity, and outstanding C axis accuracy. 12-station Power turret enables operators to perform machining of workpieces from simple to complex shaped components with one set up operation. Capacity Chuck size - inch - 10 ,* 12 Spindle Spindle bore - mm - Φ86 Max. dia. of through-hole - mm - Φ75 Turret Max. speed of driving tool - rpm - 4000, *5000 Tailstock Type of tailstock - Hydraulic , *SPT,* HPT Taper of tailstock quill - MT5 Travel of tailstock - mm - 100-750, * 1000 , * 1700 Others Slant bed degree - 35 ° Guideway type - LM Power capacity - kVA - 45
