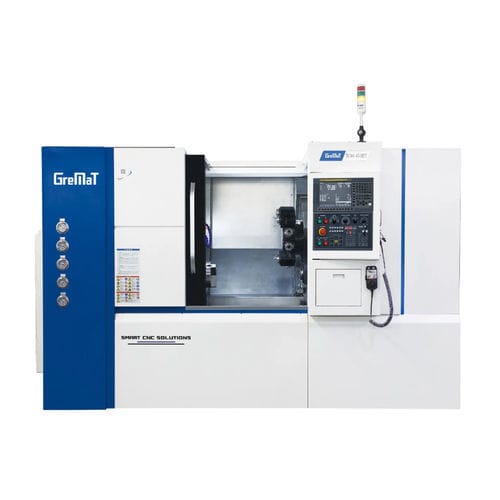

CNC turning center TC500MYT-650

2-axismulti-axis2-spindle

The TC500 adopts an advanced 45 degree Y axis structure which is the fundamental performance of rigidity and compactness. The TC500 offers a standard chuck size of 8 inches for spindle 1 and 6 inches for spindle 2. The sub spindle specification enables continuous machining of both surfaces. The combination of driven live tools and Y-axis function enables integrated machining from turning to secondary/back face machining, and multi-axis interpolation machining, allowing for process integration. The model provides 2- axis turning, and Y axis milling with various spindle and turret options. Customers can choose a “one-of-a-kind machine” that flexibly meets their own needs. Spindle Hydraulic chuck / Collet chuck - lnch - 8 Diam. of spindle bore - mm - Φ66 Max. diam. of through-hole - mm - Φ52 Sub-Spindle - Hydraulic chuck - inch - N/A Diam. of spindle bore - mm - N/A Max. diam. of through-hole - mm - N/A Spindle nose - N/A Max. spindle speed - rpm - N/A Main motor - kW - N/A Axis B axis travel - mm - N/A Y axis travel - mm - 100 (±50) X/Z1/Z2/Y axis ballscrew - mm - 32×P08 / 32×P10 / N/A / 32×P06 Cutting feed rate - m/min - 10 Turret Type of turret - BMT55 OD tool shank size - mm - 25×25 Boring tool shank size - mm - Φ40 Live tooling motor - kW - 3.7/5.5 Max. speed of live tooling - rpm - 5000 *Tailstock Type of tailstock - Hydraulic Taper of tailstock quill - MT5 Travel of tailstock - mm - 80-650
