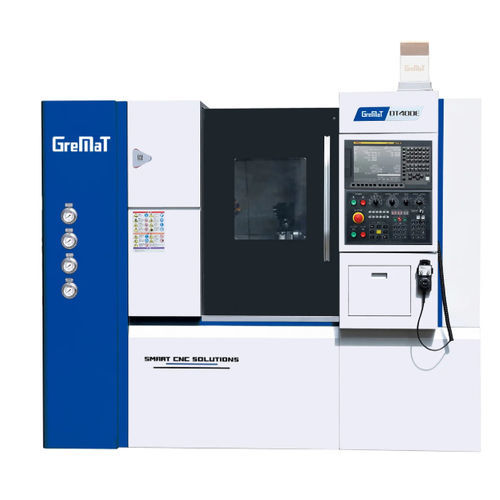

CNC turning center DT400E3-axisA2-512 tools
Add to favorites
Compare this product
Characteristics
- Control type
- CNC
- Number of axes
- 3-axis
- Spindle mount
- A2-5
- Number of tool stations
- 12 tools
- Drive system
- belt drive
- Applications
- for mass production
- Associated function
- milling, drilling, tapping
- Diameter
350 mm, 500 mm
(13.78 in, 19.69 in)- Spindle speed
5,000 rpm
(31,415.927 rad.min-1)- Maximum part length
320 mm
(13 in)- Maximum cutting diameter
160 mm
(6 in)- Axe X
230 mm
(9 in)- Axe Z
320 mm
(13 in)- Rapids on X
20 m/min
- Rapids on Z
20 mph
(32 km/h)- Nominal power
11 kW, 15 kW
(15 hp, 20.4 hp)- Overall lenght
2,730 mm
(107 in)- Overall width
2,050 mm
(81 in)- Overall height
2,280 mm
(90 in)- Weight
4,000 kg
(8,818 lb)
Description
Z-MaT DT series turning centers provide DDS spindle or Belt spindle units, Driven tool turret and Y axis features. This Series extremely extends machining capability for combining turning and off center milling. With Y axis, customers can replace more than 90% secondary machining process by milling machine for turned parts. It will save the labor time, increase accuracy and efficiency.
Thanks for mass production, Z-MaT work hard to make every customer own an excellent turning center at an affordable price. You don’t need 1 CNC lathe and 1 milling/drilling/tapping machine any more. In most instances, one unit of DT series turning center solves all your problems in one setup.
